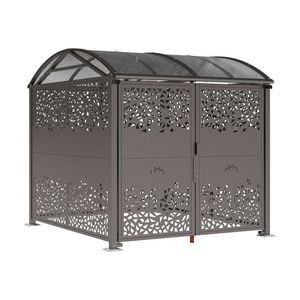

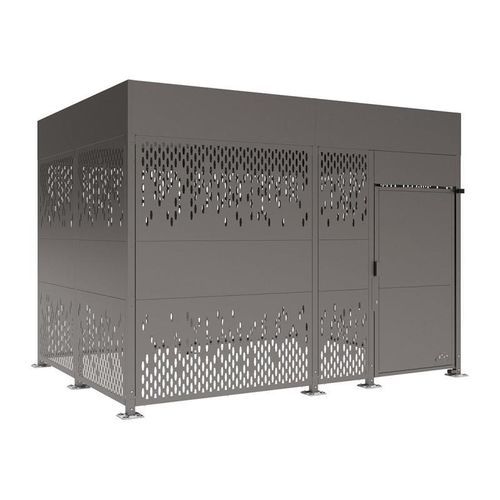

Polycarbonate canopy cycle shelter Horizon

securemodularwith LED light

Description
The Horizon secure bicycle shelter features a modular design and contemporary appearance. Modules are added without limit to create customised secure bicycle parking. Compatible with single or double-deck racks, it optimises capacity while providing enclosure and controlled access suitable for urban and commercial projects.

Available configurations

• Colour options: Procity® Grey; RAL 9010; RAL 5010; RAL 3020; RAL 9005; RAL 7044; RAL 3004; RAL 6005; RAL 8017; Corten effect
• Style: Initial unit or Extension module
• Module widths: selectable 4023 mm or 5998 mm

Accessories & options

• Connected lock (optional)
• Canopy
• Bike rack (compatible with single or double-deck racks)
• BIKE PARK sticker
• LED lighting
• Bicycle symbol signage

Associated products

• Horizon double-decker bike rack
• Connected lock
• LED lighting for secure shelters

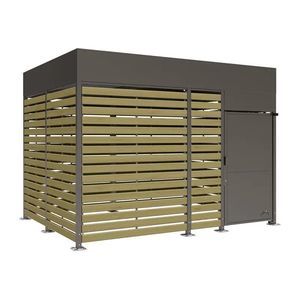

• Wood Horizon secure bike shelter (variant)

Technical specifications

• Reference: 529902.GPRO
• Availability: approx. 8 weeks
• Unit weight: 1200 Kg
• Two lengths: 4023 mm or 5998 mm
• Dimensions: height 3000 to 3150 mm x depth 3066 mm
• Parking capacity: up to 8 bicycles (4023 mm module) or up to 12 bicycles (5998 mm module) depending on rack chosen
• Structure: galvanized steel posts 70 x 70 mm
• Roof: steel tube crossbeams 90 x 50 mm (3 mm) and sheet panels 1.25 mm thick
• Cladding: decorative sheet metal, 2 mm thick
• Single door: sheet metal door, interior opening without key; gas strut holds door open or closed
• Locking system: European key lock; connected lock (optional); mechanical keypad (on request)
• Finish: painted steel on galvanization according to available colours
• Installation: on galvanized base plates, height-adjustable feet (max 150 mm); expansion bolts supplied
