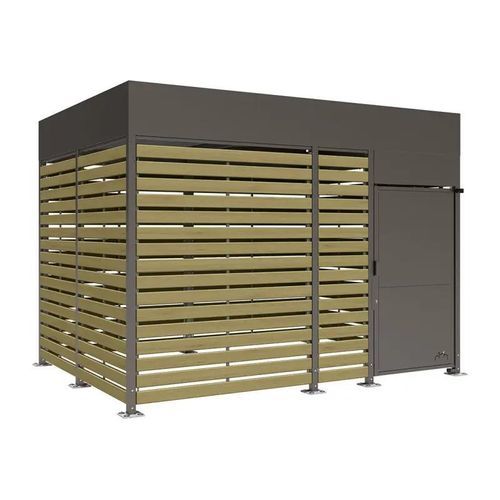

Secure cycle shelter Horizon

modularwith LED lightgalvanised steel

Presentation
The Horizon bike shelter combines modular design and secure storage to create tailored bicycle parking for urban and commercial projects. Modules can be linked without length limitation and accept single- or double-deck racks to maximise occupancy while protecting users. The product is suited to public spaces, workplaces and campuses where durable, well-integrated cycle parking is required.

Available configurations

• Colours: Procity Grey, RAL 9010, RAL 5010, RAL 3020, RAL 9005, RAL 7044, RAL 3004, RAL 6005, RAL 8017, Corten finish
• Structure: initial module or extension module
• Widths: 4000 mm or 6000 mm
• Overall dimensions: height 3000 to 3150 mm x depth 3066 mm

Product information

• Reference: 529922.GPRO
• Lead time: 8 weeks
• Unit weight: 1550 kg

Characteristics / technical specifications

• Two module lengths: 4023 mm or 5998 mm
• Dimensions: height 3000 to 3150 mm x depth 3066 mm
• Parking capacity: up to 8 bikes for 4023 mm module and up to 12 bikes for 5998 mm module (depends on chosen rack/support)
• Structure: 70 x 70 mm galvanized steel posts
• Roof: steel tube crossmembers 90 x 50 mm, 3 mm thickness; sheet panels 1.25 mm thickness
• Cladding: softwood boards, 36 mm thickness
• Single door: steel sheet. Interior release without keys. Door held open/closed by gas strut
• Locking: European cylinder; connected lock (optional); mechanical code lock (on request)
• Finish: painted steel on galvanized surface per available colours; raw softwood cladding
• Fixing: galvanised baseplates, adjustable feet up to 150 mm, expansion anchors supplied
• Options: connected lock; canopy; bike racks; "PARC À VÉLOS" sticker; LED lighting; bicycle pictogram signage
