Secure cycle shelter Horizon

modularwith LED lightgalvanised steel

Description

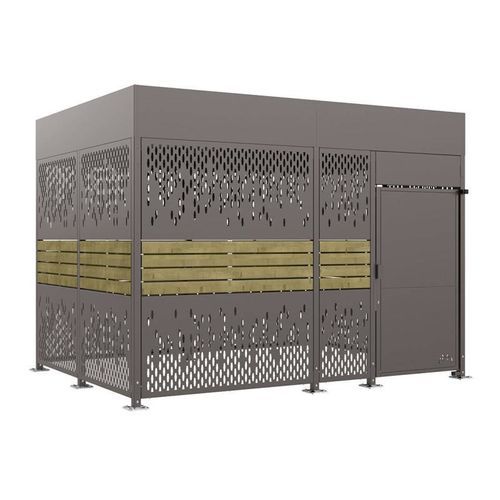

Modular, elegant and functional, the Horizon bicycle shelter adapts to a wide range of site configurations. Add modules freely to create a customised bicycle area without length restriction. Designed to accept single- or double-deck racks, Horizon maximises parking capacity while providing enhanced security and scalable deployment for urban and corporate cycling spaces.

Key options and selections

• Colours: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity® Grey, Corten effect
• Style: initial unit or extension module
• Dimensions (module widths): 4023 mm or 5998 mm

Accessories & options

• Connected lock (optional)
• Canopy
• Bike rack (choice of rack or support to suit)
• "BIKE PARK" sticker and "bicycle" symbol signage
• LED lighting

Technical characteristics / specifications

• Two lengths: 4023 or 5998 mm
• Overall dimensions: height 3000 to 3150 mm × depth 3066 mm
• Parking capacity: up to 8 bicycles for a 4023 mm wide module and up to 12 for a 5998 mm wide module (depending on the bike rack or support chosen)
• Structure: 70 × 70 mm galvanised steel posts
• Roof: 90 × 50 mm steel tube cross-members, 3 mm thick, with 1.25 mm metal sheet panels
• Cladding: 2 mm thick decorative metal sheet and 36 mm thick resinous wood
• Single door: sheet metal; can be opened from the inside without a key; door held in open and closed positions using a gas strut
• Locking system: European key lock standard; connected lock optional; mechanical keypad available on request
• Finish: painted steel on galvanised steel and raw resinous wood
• Installation: on galvanised base plates, height-adjustable feet (max. 150 mm); expansion bolts supplied
• Options listed: connected lock, canopy, bike rack, “BIKE PARK” sticker, LED lighting, “bicycle” symbol signage
• Reference: 529912.GPRO
• Availability (as shown): 8 weeks
• Indicative weight (as shown): 1300 Kg
