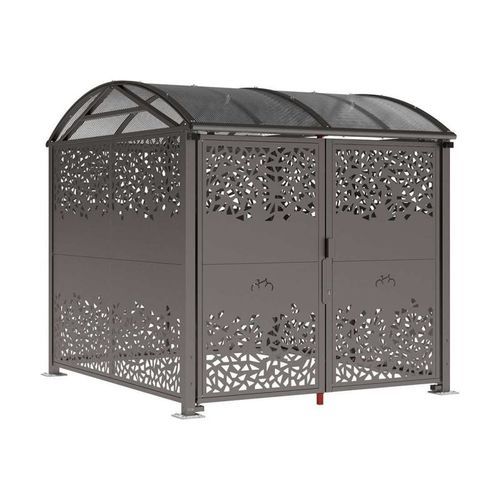

Polycarbonate canopy cycle shelter L

securemodularwith LED light

Overview
The secure outdoor shelter 529097.GPRO 'Vault L' is designed to protect parked bicycles and motorcycles in public and private spaces. Modular by design, the initial module accommodates up to 6 bicycles or 2 motorcycles and can be extended with additional modules to increase capacity.

Options & variants

• Available colours: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity® Grey, Corten effect
• Module types: initial module with cladding and door; complementary extension module (2440 mm)
• Locking systems: European cylinder key or mechanical digital code; optional connected lock (ref. 529089)
• Accessories: LED lighting (ref. 509041); bike racks and stands

Technical specifications

• Reference: 529097.GPRO
• Module length: 2520 mm
• Overall dimensions: height 2646 to 2796 mm x depth 3023 mm
• Parking capacity: up to 6 bicycles per 2520 mm module (depends on selected rack)
• Structure: galvanised steel posts 80 x 80 mm
• Roof: steel cross-members 60 x 40 mm; aluminium gutters; 10 mm anti-UV cellular polycarbonate vaulted roof; anti-intrusion roof reinforcements
• Cladding: 1.2 mm decorative cut sheet metal
• Double door: upper part decorative sheet, lower part 1.5 mm sheet; interior unlocking possible without keys; doors held open/closed by cylinder
• Extension module length: 2440 mm
• Finish: painted on galvanised steel in manufacturer's colours
• Weight: 520 kg
• Lead time: 8 weeks

Installation & fixing

• Fixing on galvanised base plates 200 x 200 mm; height-adjustable feet (max 150 mm); expansion bolts supplied
• Alternative fixing on square concrete blocks 400 x 400 mm (h 400 mm) or 250 x 250 mm (h 400 mm)
