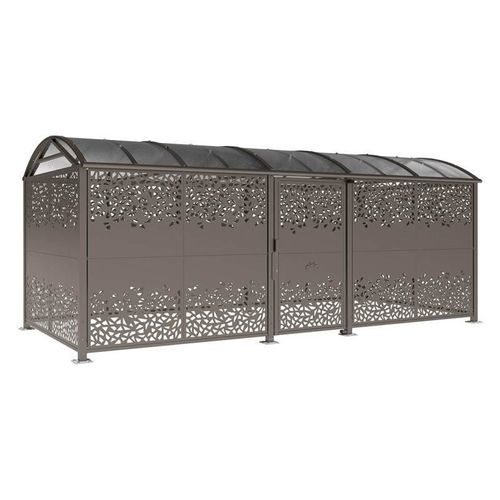

Polycarbonate canopy cycle shelter XL

securedesignwith LED light

Product overview
This spacious shelter ensures optimal protection and comfortable use. Its generous capacity shelters bicycles and motorcycles from bad weather and vandalism, whether in public spaces or private parking areas. The enclosure is built on a galvanised steel frame with a cellular polycarbonate barrel roof and decorative cut steel cladding. The single door can be secured with a European key lock or a mechanical digital code lock and allows interior opening without keys. Options available for access control and LED lighting.

Available colours

• Procity Grey
• RAL 9010
• RAL 5010
• RAL 3020
• RAL 9005
• RAL 7044
• RAL 3004
• RAL 6005
• RAL 8017
• Corten effect

Methods of locking

• European lock / key
• Digital (mechanical) lock

Associated products (examples)

• Connected lock (accessory)
• LED lighting for secure shelters (accessory)
• Bicycle stands and racks (accessories)

Features / technical specifications

• Reference: 529094.GPRO
• Length: 6225 mm
• Dimensions: height 2646 to 2796 mm x depth 3023 mm
• Parking capacity: up to 12 bicycles (depending on the bicycle stand or rack chosen)
• Structure: 80 x 80 mm galvanised steel posts
• Roof: 60 x 40 mm steel cross-members and aluminium gutters; 10 mm anti-UV treated cellular polycarbonate barrel roof; anti-intrusion roof reinforcements
• Cladding: 1.2 mm thick decorative sheet metal (cut/stamped)
• Single door: upper part in decorative sheet metal, lower part in 1.5 mm thick sheet metal; unlocking by European key or mechanical digicode; interior opening without keys; doors held in open and closed positions by a cylinder
• Finish: painted on galvanised steel in the available colours
• Installation: on 200 x 200 mm galvanised base plates, height-adjustable feet (max 150 mm), expansion bolts included; alternative: 400 x 400 mm square concrete blocks, 400 mm high
• Options: connected lock (ref. 529089); LED lighting (ref. 509041); various bicycle stands and racks
• Weight: 1050 Kg
• Availability: 8 weeks
