Aluminum edge trim BORDERTEC BCS

stainless steelanodized aluminumbrushed stainless steel

Overview

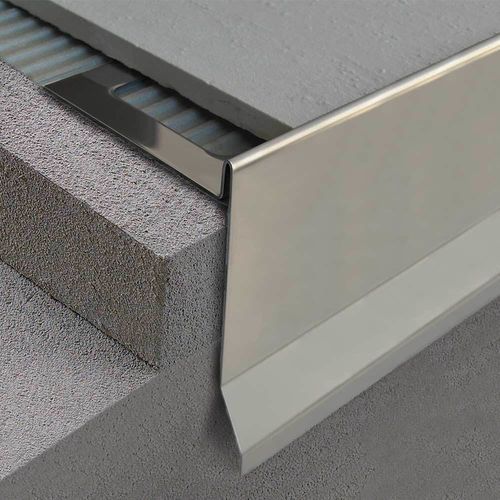

BORDERTEC BCS perimeter edging profiles trim and protect the exposed concrete edge of balconies and terraces tiled with 12.5 mm ceramic tiles. The profile's indented lip allows the tiled surface to be laid flush, providing a clean junction between tile and edge.

Terminal profiles / Drainage
The profile includes a protruding drip edge that protects the DRAINTEC 8 drainage mat placed between the mortar bed and the waterproofing membrane. Always allow an expansion gap between dissimilar materials and conceal it with an appropriate joint profile or accessory.

How to install border profiles for balconies

• Selection: choose the profile height matching tile height plus screed thickness.
• Positioning: install the profile along the exposed edge and fix it during tile laying to ensure alignment with the tiled surface.

Accessories

• Bordertec BCSE: external corner accessory for creating precise external corners compatible with BCS profiles.
• Bordertec BCSG: linear joint for connecting two BCS borders; leave approx. 20 mm gap for correct thermal expansion. The joint can be fitted after profile installation.

Downloads
Product datasheet, joint datasheets, technical drawings and CAD files are available for specification and installation guidance.

Materials and finishes (tables)
Stainless Steel 304 / Brushed
H/H1 (mm) | Art.
42 | BCS 42 IS
55 | BCS 55 IS
75 | BCS 75 IS
95 | BCS 95 IS

Aluminum / Anodized
H/H1 (mm) | Art. | Color
30 | BCS 30 AS | Silver

Aluminum / Powder Coated
H/H1 (mm) | Art. | Color
30 | BCS 30 A11 | Pure White
42 | BCS 42 A11 | Pure White
55 | BCS 55 A11 | Pure White
75 | BCS 75 A11 | Pure White
95 | BCS 95 A11 | Pure White
30 | BCS 30 A22 | Pastel Grey
42 | BCS 42 A22 | Pastel Grey
55 | BCS 55 A22 | Pastel Grey
75 | BCS 75 A22 | Pastel Grey
95 | BCS 95 A22 | Pastel Grey
30 | BCS 30 A63 | Embossed Dark Brown
42 | BCS 42 A63 | Embossed Dark Brown
55 | BCS 55 A63 | Embossed Dark Brown
75 | BCS 75 A63 | Embossed Dark Brown
95 | BCS 95 A63 | Embossed Dark Brown
30 | BCS 30 A24 | Embossed Pastel Grey
42 | BCS 42 A24 | Embossed Pastel Grey
55 | BCS 55 A24 | Embossed Pastel Grey
75 | BCS 75 A24 | Embossed Pastel Grey
95 | BCS 95 A24 | Embossed Pastel Grey
30 | BCS 30 A25 | Embossed Cement Grey
42 | BCS 42 A25 | Embossed Cement Grey
55 | BCS 55 A25 | Embossed Cement Grey
75 | BCS 75 A25 | Embossed Cement Grey
95 | BCS 95 A25 | Embossed Cement Grey
30 | BCS 30 A50 | Micaceous Grey
42 | BCS 42 A50 | Micaceous Grey
55 | BCS 55 A50 | Micaceous Grey
75 | BCS 75 A50 | Micaceous Grey
95 | BCS 95 A50 | Micaceous Grey
30 | BCS 30 A60 | Embossed Corten
42 | BCS 42 A60 | Embossed Corten
55 | BCS 55 A60 | Embossed Corten
75 | BCS 75 A60 | Embossed Corten
95 | BCS 95 A60 | Embossed Corten
30 | BCS 30 A64 | Embossed Dark Brown
42 | BCS 42 A64 | Embossed Dark Brown
55 | BCS 55 A64 | Embossed Dark Brown
75 | BCS 75 A64 | Embossed Dark Brown
95 | BCS 95 A64 | Embossed Dark Brown
30 | BCS 30 A14 | Embossed White
42 | BCS 42 A14 | Embossed White
55 | BCS 55 A14 | Embossed White
75 | BCS 75 A14 | Embossed White
95 | BCS 95 A14 | Embossed White

Technical specifications

• Product: BORDERTEC BCS perimeter edging profile for ceramic terraces and balconies.
• Typical tile compatibility: 12.5 mm tile thickness.
• Function: protects exposed concrete edge; allows flush tile installation with indented lip; provides drip edge to protect DRAINTEC 8 drainage mat and waterproofing layer.
• Materials: Stainless Steel 304 (AISI 304 / DIN 1.4301) and Aluminum (anodized or powder coated).
• Available heights and article codes: see materials tables (30, 42, 55, 75, 95 mm variants).
• Accessories: BCSE external corner, BCSG linear joint; leave expansion gaps as indicated.
• Installation notes: select profile height per tile plus screed; fix profile at tile laying stage; allow thermal expansion gaps and conceal with joints or accessories.
