Stainless steel edge trim BORDERTEC BHS

aluminumfor tileoutside corner

Description

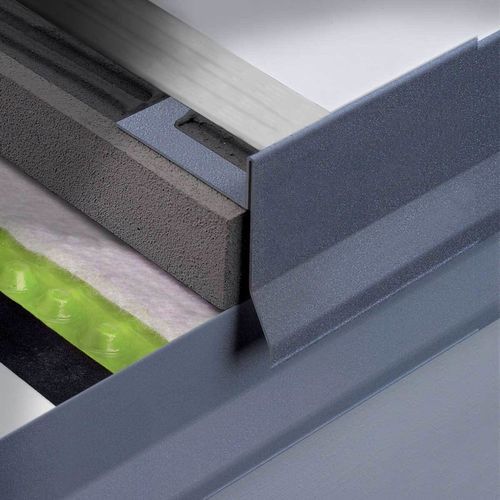

Perimeter finishing and drip-edge profile BORDERTEC BHS for exposed edges of balconies and terraces with 20 mm tile finishes. Features a top retaining rib to contain tiles laid flush with the screed and a lower anti-drip tooth to prevent water tracking.

Angles and joints
The BHS profile includes an outward-sloped drainage angle to protect the Draintec 8 drainage membrane positioned under the screed and above the waterproofing layer. Allow appropriate gaps between elements for thermal expansion and conceal the joint with the dedicated joining accessory.

Materials and finishes available
BORDERTEC BHS-A in powder-coated aluminum. Available in Grey Pastel (A22) and Textured Micaceous Grey (A50). External corners (BHSE) and joining elements (BHSG) are available.

Table - Aluminum / Powder-coated
H (mm) | Art. | Colour
55 | BHS 55 A22 | Grey Pastel
55 | BHS 55 A50 | Textured Micaceous Grey

Accessories

• Bordertec BHSE — external corner for BORDERTEC BHS; compatible; available in stainless steel or powder-coated aluminum (Modern Line).
• Bordertec BHSG — joint to connect two BORDERTEC BHS bars; allow a minimum expansion gap (e.g. 2 cm); available in powder-coated aluminum (Modern Line).

Download and technical drawings
Product data sheet (PDF), technical drawings and section files (ZIP) are available for download.

Characteristics / Technical specifications

• Application: perimeter finishing profile and drip-edge for balconies and terraces.
• Tile thickness compatibility: 20 mm.
• Material: powder-coated aluminum; some accessories available in stainless steel.
• Finishes: polyester powder coating (A22, A50).
• Available height: H = 55 mm (BHS 55 A22 / BHS 55 A50).
• Functional features: top retaining rib, lower anti-drip tooth, outward-sloped drainage angle to protect Draintec 8 membrane.
• Accessories: BHSE external corners, BHSG joining pieces for expansion gaps.
• Installation notes: leave expansion gap and conceal joint with joining element; protect drainage membrane during installation.
