Aluminum edge trim BORDERTEC BR

for flooroutside cornerfor tile

Product overview

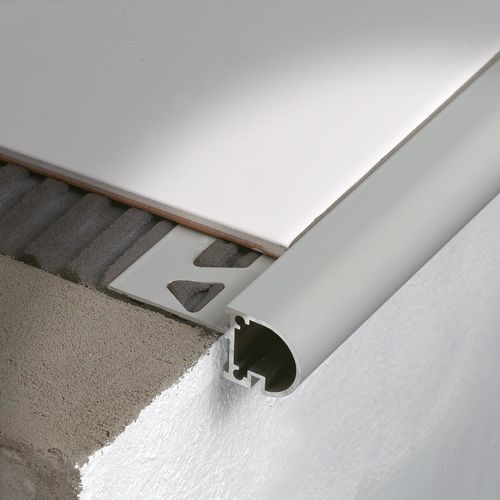

Perimeter profile designed to complete terrace and balcony tile edges in retrofit applications without prior on-site threshold preparation. The rounded profile section incorporates an integrated drip channel to direct water away from the tile edge. External corner elements join profile segments for clean transitions. Leave an expansion gap to accommodate thermal movement and conceal it with a compatible joining profile.

Materials and finishes
Bordertec BR-A — Powder-coated Aluminium
BORDERTEC BR-A is supplied in polyester powder-coated aluminium across the full surface. The rounded section with integrated drip channel provides a practical alternative to special ceramic or marble finishing pieces. Available in several painted finishes and two heights (8 mm and 10 mm).

Available sizes / Article codes / Colours (Aluminium / Powder Coated)
BxH (mm) | Art. | Color
8 | BR 80 A11 | Pure White
10 | BR 100 A11 | Pure White
8 | BR 80 A22 | Pastel Grey
10 | BR 100 A22 | Pastel Grey
8 | BR 80 A32 | Dark Beige
10 | BR 100 A32 | Dark Beige
8 | BR 80 A62 | Red Brown
10 | BR 100 A62 | Red Brown
8 | BR 80 A63 | Embossed Dark Brown
10 | BR 100 A63 | Embossed Dark Brown

Accessories

• Bordertec BRE — external corner element compatible with BORDERTEC BR; adapts to both profile heights.
• Bordertec BRG — joining element to connect two BORDERTEC BR profiles; adapts to both available heights.

Downloads

• Bordertec BR – Datasheet (English) available in the product downloads section.

Technical drawings / Files

• Technical section and drawings available for BR-A (GIF images and downloadable ZIP packages in imperial and metric formats on the product page).

Technical characteristics / specifications

• Product family: BORDERTEC BR — perimeter profile with integrated drainer for balconies and terraces.
• Function: rounded profile section with integrated drip channel to direct water away from tile edges.
• Typical application: retrofit finishing of terrace and balcony tiles without prior on-site threshold preparation.
• Material options: Powder-coated aluminium (BR-A).
• Finish: polyester powder coating across the full surface.
• Available heights (BxH mm): 8 mm and 10 mm.
• Article codes: BR 80 A11, BR 100 A11, BR 80 A22, BR 100 A22, BR 80 A32, BR 100 A32, BR 80 A62, BR 100 A62, BR 80 A63, BR 100 A63.
• Available colours: Pure White; Pastel Grey; Dark Beige; Red Brown; Embossed Dark Brown.
• Accessories: external corner (Bordertec BRE) and joining element (Bordertec BRG) compatible with main profile heights.
• Installation note: leave an expansion gap to allow thermal movement between different materials; the gap can be concealed with a compatible joining profile.
• Downloads: product datasheet (PDF) and technical drawings available from the product download section.
