Aluminum edge trim BORDERTEC BD20

for tilefor floor coveringsfor floor

Overview

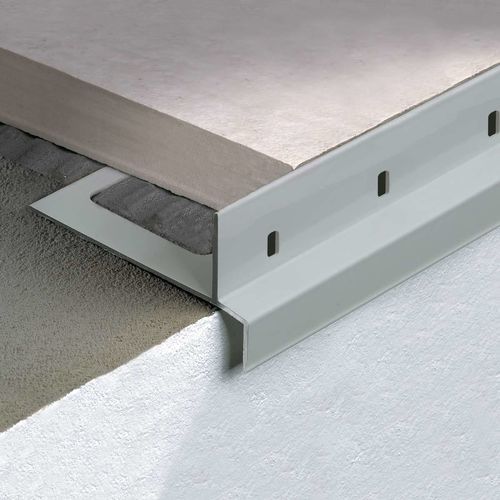

Bordertec BD20 is a perimeter draining profile for finishing and protecting the exposed concrete edge of balconies and terraces, designed for 20 mm porcelain paving tiles. The profile features simple, minimalist geometry and oval drainage holes that facilitate water flow and reduce the risk of water ingress into the screed.

Material / Finish
Powder-coated aluminium profile with oval draining holes. Available finish: Powder coated.

Available variants (table)
H (mm) | Art. | Color
20 | BD 20 A22 | Pastel Grey
20 | BD 20 A50 | Micaceous Grey

Accessories

• Bordertec BDE20 — external corner for BORDERTEC BD20, painted aluminium with drainage holes to ensure rainwater evacuation.
• BDG20 — joint compatible with BORDERTEC BD20 for connecting adjacent profiles.

Downloads & Technical Resources
Datasheet and technical drawings available from the manufacturer for BORDERTEC BD20.

Characteristics / Specifications

• Product family: BORDERTEC BD20
• Function: Perimeter draining and edge protection for balconies and terraces
• Application: For 20 mm (2 cm) porcelain paving tiles
• Material: Powder-coated aluminium
• Design features: Oval drainage holes; profile geometry designed to facilitate water flow and limit water infiltration into the screed
• Available height: 20 mm
• Variants: BD 20 A22 (Pastel Grey), BD 20 A50 (Micaceous Grey)
• Accessories: BDE20 (external corner), BDG20 (joint)
• Typical use: Finishing and protecting exposed concrete edge of balconies and terraces
