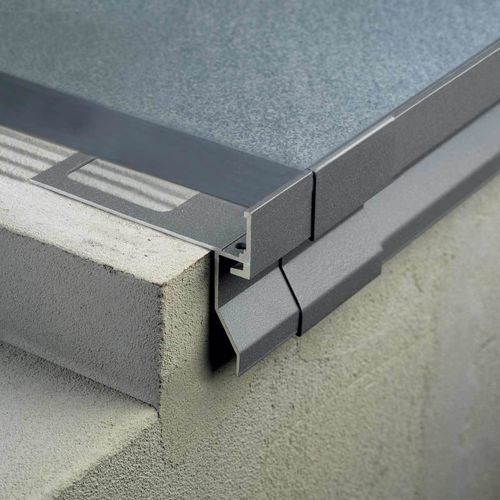

Edge protector BORDERTEC BHO

Product description
Bordertec BHO is a perimeter profile for finishing and protecting the exposed concrete edge of balconies and terraces. It is designed for ceramic paving tiles 20 mm thick and includes an upper trimming tooth to contain the tiled finish. The profile section integrates a perforated drainage channel at the lower edge to facilitate discharge of water and residual humidity; the lower drip tooth directs water away from the structure.

Terminal profiles drainage - BORDERTEC BHO
The optimized BHO section defines a perforated drainage channel at the profile's lower horizontal edge to ease water and residual humidity discharge. Allow a gap for thermal expansion and contraction between different materials and conceal the gap with the appropriate joint profile.

Materials and finishes available
Aluminum / Powder coated finish

H (mm) ; Art. ; Color
50 ; BHO 50 A22 ; Pastel Grey
50 ; BHO 50 A50 ; Micaceous Grey

Accessories

• Bordertec BHOE — external corner connection for the Bordertec BHO border: connects external corners; the profile shape is equipped with drainage holes to ensure proper water evacuation in corner zones.
• Bordertec BHOG — joint to connect two Bordertec BHO borders: compatible with BHO borders; connects the end parts of two border profiles positioned side by side, maintaining a minimum distance to allow thermal expansion.

Downloads / Documentation (available)
Datasheet, technical drawings and dimensional files are available for download (PDF and technical archives).

Characteristics / Technical specifications

• Application: perimeter profile for terraces and balconies (external edges).
• Designed for ceramic paving tiles 20 mm thick.
• Main function: finishing and protection of exposed concrete edge; upper trimming tooth to contain the tiles.
• Drainage: perforated channel at the lower edge to facilitate water and residual humidity discharge; lower drip tooth to direct water away from the structure.
• Material: aluminum (powder coated versions available).
• Finishes / Codes: BHO 50 A22 (Pastel Grey); BHO 50 A50 (Micaceous Grey).
• Height: 50 mm (H = 50 mm variants shown).
• Accessories: BHOE (external corner with drainage holes); BHOG (joint to connect two borders).
• Technical resources: datasheet and technical drawings available for download.
• Installation note: leave a gap to allow thermal expansion/contraction and conceal it with an appropriate joint/profile.
