Pendant lamp KIVO

steeloakwood

Overview
KIVO sets an architectural lighting statement for residential and commercial interiors. The pendant lamps combine high-quality glass lens optics with a die-cast aluminium housing to deliver uniform light distribution, excellent colour rendering and controlled glare. Magnetic interchangeable shades enable customised aesthetic integration into diverse interior concepts.

Product highlights
Design: RIBAG Design Studio. Configurable appearance via a choice of metal-anodized and wood-finish panels. Two sizes for distinct lighting effects and applications.

High quality glass lens technology
Exceptional light brilliance and high CRI are achieved through precision glass optics paired with selectable louvers and a robust aluminium housing. The optical system is optimised for defined beam control and visual comfort.

Optics (summary table)
Pendant lamp Ø 140 mm – direct beam 60°
Pendant lamp Ø 270 mm – bottom direct beam 70°; top indirect beam (approx. 50%/50% distribution)

Interchangeable shades and finishes

• Housing colours: black (RAL 9005), white (RAL 9003), grey (RAL 9006)
• Shade / panel finishes: golden brown anodized, champagne anodized, oak wood, black walnut wood, rosé gold, sand gold, natural anodized
• Shade change: magnetic mounting for quick, tool-free interchangeability (panels ordered separately)

Lighting quality
Integrated LED modules provide high luminous efficacy and CRI > 90. The system offers crisply defined light cones, effective glare control (UGR values per variant) and, for the larger model, a pleasant mix of direct and diffuse indirect light for atmospheric spaces.

In-room applications

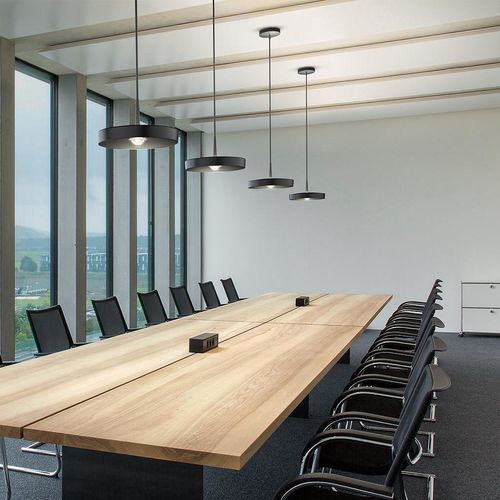

KIVO is suitable for conference rooms, design studios, restaurants, dining and lounge areas as well as upscale residential settings — adaptable to both task and ambient lighting requirements.

Technical specifications

• Series / model name: KIVO
• Design: RIBAG Design Studio
• Sizes: Ø 140 mm and Ø 270 mm
• Mounting (Ø 140 mm AC 230V): Ceiling mounting, connection to 230 V AC / 50 Hz, dimmable via LED phase dimmer, cable Ø 5 mm, cable length 2500 mm
• Mounting (Ø 140 mm ext. control gear): Ceiling mounting with steel cord cable Ø 5 mm, length 2500 mm; canopy/control gear or cavity adapter/mounting rail ordered separately
• Mounting (Ø 270 mm): Ceiling mounting with steel cord cable Ø 7 mm, length 2500 mm; canopy/control gear or cavity adapter/mounting rail ordered separately
• Lamp housing: Die-cast aluminium
• Optics (Ø 140 mm AC 230V): High-quality glass lens technology, beam angle 60°, UGR ≤ 16
• Optics (Ø 140 mm ext. control gear): High-quality glass lens technology, beam angle 60°, UGR ≤ 19
• Optics (Ø 270 mm): High-quality glass lens technology, beam angle 70°, 50% direct / 50% indirect, UGR ≤ 10
• Lamps: Integrated LED, CRI > 90; colour temperatures: 2700 K or 3000 K (4000 K on request for some variants)
• Control gear (where applicable): EB 230 V / 50 Hz, constant current 700 mA (order control gear with canopy or mounting rail separately)
• Service life: 50'000 h L90 B10 (Ta 25° C)
• Lamp protection class: I
• Protection level: IP 43 (Ø 140 mm AC 230V); IP 40 for other variants (ext. control gear Ø 140 mm and Ø 270 mm)
• Energy efficiency class: F (Ø 140 mm AC 230V); D (ext. control gear Ø 140 mm and Ø 270 mm)
• UGR and beam data: see optics entries per size above
• Interchangeable shades: Magnet-mounted panels in metal-anodized and wood finishes (order panels separately)
