LED strip light MILUM

IP20IP44acrylic

Overview

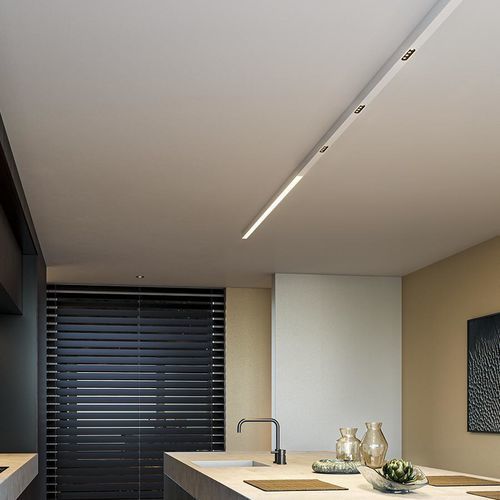

The MILUM Lightline is a miniaturized linear LED luminaire designed for continuous or individual installations. The configurator enables planning of continuous lightlines to the millimetre, making it suitable for general lighting in high-quality residential and commercial projects.

Design & Concept
MILUM combines precise workmanship, a coherent design language and premium materials. The compact system provides flexibility for architectural integration and supports tailored lighting concepts in interiors where refined visual appearance and uniform light are required.

Design Variants

• Available as direct-beam and omnidirectional modules with integrated through-wiring.
• Omnidirectional diffuse module also available as a single luminaire (without feed-through wiring) and with a reduced-height mounting rail.
• Mounting variants: surface-mounted and pendant; single luminaires suitable for ceiling or wall mounting.

Lighting Effect & Visual Comfort
The MILUM Lightline delivers homogeneous, soft illumination with minimal shadowing. It is suitable for general lighting tasks (kitchen, corridor, stairwell), as an IP44 single luminaire for bathrooms, or as continuous runs for clear visual guidance in commercial environments.

Selectable Finishes

• Natural anodised
• Black RAL 9005
• White RAL 9003

In-shop Variants / Typical Formats

• Single luminaire with opal diffuser, 600–1800 mm, omnidirectional (surface-mounted and pendant versions)
• Light system Lightline 600–1800 mm, omnidirectional (surface-mounted and pendant)
• Light system Lightline 600–1800 mm, direct-beam (surface-mounted and pendant)
• Configurator variants: direct-beam and omnidirectional configurators (some variants allow tool-less installation on mounting rails)

Technical specifications

• Mounting: ceiling or wall; some versions allow tool-less installation on mounting rails (mounting rail ordered separately).
• Lamp housing: extruded aluminium; configurator options available in natural anodised, Black RAL 9005, White RAL 9003.
• Optics: opal acrylic diffuser; UGR ≤ 25.
• Lamps: integrated LED, CRI >90; available colour temperatures: 2700 K, 3000 K or 4000 K depending on variant.
• Function note (configurator/continuous systems): lumen specifications correspond to measured values including opal acrylic cover.
• Service life: approx. 50,700 h (L90 B10, Ta 25 °C) as indicated in technical documentation.
• Control gear: PS 230 V / 50 Hz.
• Lamp protection class: Class I or III depending on variant (specified per product type).
• Protection level: IP44 for specific single-luminaire bathroom versions; other variants typically IP20.
• Energy efficiency class: E (as indicated in technical documentation).
• Optical distribution: omnidirectional diffuse or direct-beam (distribution diagrams in technical documentation).
• Length options: typical module/luminaire lengths 600–1800 mm; in some configurator versions last segments can be separated at specified intervals.
