Hanging light fixture MILUM

surface-mountedLEDrectangular

Overview

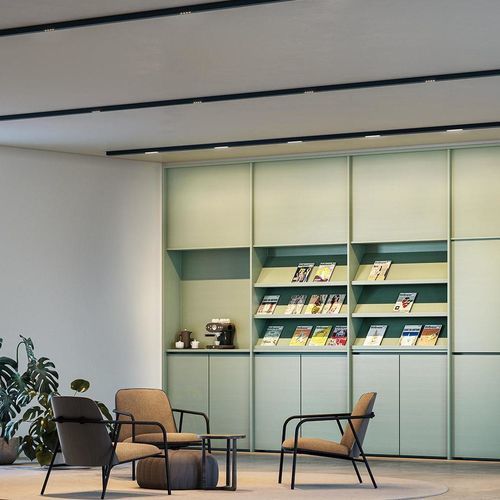

The MILUM Wallwasher combines a compact, miniaturised profile with high-performance wall illumination delivered directly from the ceiling edge. Free-form reflectors ensure uniform light distribution without scatter loss and effective longitudinal glare control, making the product suitable for architectural and commercial lighting applications.

Product highlights

• Design: precise workmanship, consistent design language and premium materials for residential and commercial interiors.
• Advanced optics: Bartenbach components and micro-facetted lighting technology for a slim profile and excellent glare control.
• Light quality: high lumen output, CRI >90, SDCM2 and UGR ≤19 (C90) for comfortable visual conditions.
• Tunable White: configurable color temperature from 2200 K to 5000 K (fixed options 2700 K and 3000 K available).
• Finishes: black RAL 9005, natural anodised and white RAL 9003 for seamless interior integration.

Variants & Mounting

• Module options: Wallwasher module 8 (600 mm) and 2×8 module (1200 mm).
• Mounting variants: surface-mounted (ceiling luminaires) and pendant versions.
• Installation: tool-less installation on mounting track (mounting track ordered separately). Pendant sets ordered separately.

Lighting effect
Wall illumination is produced directly from the ceiling edge by free-form reflectors, delivering brilliant, uniform light with minimal scatter loss and strong longitudinal glare control. 8- or 2×8-reflector modules provide high luminous intensity in a compact profile.

Compatibility
The modular system can be combined with MILUM Lightline and MILUM Downlight to expand design and functional options.

Technical specifications

• Mounting: tool-less installation on mounting track (mounting track ordered separately); pendant sets ordered separately.
• Housing: extruded aluminium.
• Optics: high-quality micro-facetted lighting technology; recessed light exit in a slim profile for excellent glare control.
• UGR: ≤19 (C90).
• LEDs: CRI >90, SDCM2; integrated LEDs; color temperatures: 2700 K, 3000 K or Tunable White 2200 K–5000 K.
• Lifetime: 50,000 h L90 B10 (Ta 25°C).
• Control gear: PS 230 V / 50 Hz.
• Protection class: I.
• Ingress protection: IP 20.
• Energy efficiency class: F.
• Available module lengths: 600 mm (module of 8) and 1200 mm (2× module of 8).
• Selectable finishes: black RAL 9005; natural anodised; white RAL 9003.
