Hanging light fixture MILUM

LEDrectangularlinear

Overview

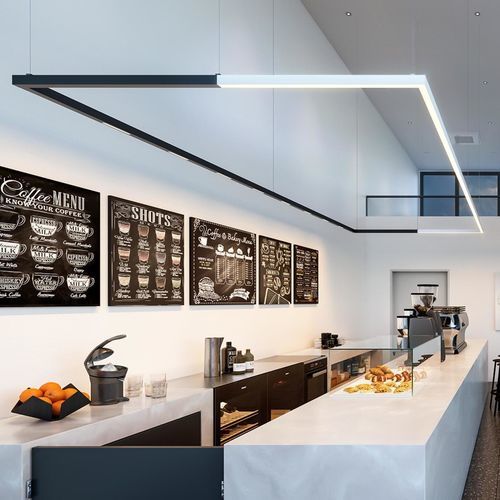

The MILUM Lightline is a miniaturized linear LED light system designed for general lighting in private and commercial spaces. Its compact profile and diffuse light output enable homogeneous illumination for continuous runs or individual luminaires. The online configurator supports planning continuous lightlines to millimeter precision.

Product highlights

• Design by RIBAG Design Studio: precise workmanship, consistent design language and high-quality materials.
• Miniaturized system offering broad design flexibility for residential and commercial applications.
• Perfectly homogeneous, soft light distribution without shadowing (UGR ≤ 25).
• Available as single luminaires or as continuous lighting systems with integrated through-wiring.

Designs and variants

• Available as direct-beam modules and omnidirectional modules with integrated through-wiring.
• Omnidirectional diffuse module available also as a single luminaire (without feed-through wiring) and with a reduced-height mounting rail.
• Mounting variants: surface-mounted and pendant; selected single luminaires suitable for ceiling or wall mounting.

Optical and visual performance
The system delivers homogeneous soft light suitable for general lighting tasks such as kitchens, corridors and stairwells. Selected mounted single-luminaire variants are rated IP44 for use in wet rooms.

Selectable color variations

• Natural anodised
• Black RAL 9005
• White RAL 9003

Configurator / Shop
The configurator supports continuous lightline planning to millimeter precision and multiple product variations (single luminaires, pendant, mounted, direct/omnidirectional configurator variants).

Technical specifications

• Mounting: Ceiling or wall mounting depending on variant; some system variants allow tool-less installation on mounting rails (rails ordered separately).
• Mounting detail (configurator/rail variants): tool-less mounting on rails; the last 300 mm / 150 mm can be separated by the user every 25 mm (for 600 mm luminaire where specified).
• Housing: Extruded aluminium; finishes: natural anodised, black RAL 9005, white RAL 9003.
• Optics: Opal acrylic diffuser; UGR ≤ 25.
• Light sources: Integrated LEDs; CRI > 90; color temperatures: 2700 K, 3000 K or 4000 K (variant dependent).
• Service life: 50'7000h L90 B10 (Ta 25° C) (as stated on product page).
• Control gear: 230 V / 50 Hz (variant dependent).
• Protection class: Class I or III depending on variant.
• Ingress protection: IP44 for selected mounted single-luminaire variants; other variants IP20 (variant dependent).
• Energy efficiency class: E (as stated on product page).
• Light distribution: Homogeneous soft light; available as omnidirectional and direct-beam distributions (see variant technical descriptions).
• Use cases: General lighting for private and commercial spaces; continuous runs for clear visual guidance in commercial properties.
