LED strip light METRON

IP54IP50opal

Overview
The modular METRON lighting elements deliver very uniform, wide-beam illumination with high luminous efficacy. The closed opal diffuser provides dust protection while maintaining soft light. METRON is available as surface-mounted and pendant luminaires and as a modular lighting system.

Product highlights

• Design: Daniel Kübler
• Modular, highly efficient LED lighting system; modules combinable in multiple layouts
• Patented tool-free quick-assembly system across modules
• Dust-tight closed opal diffuser (prevents dust and insects inside the luminaire)
• Filigree pendant suspension emphasizes the slim, timeless profile; surface-mounted version convertible to pendant with optional suspension
• Uniform light distribution with controlled glare (UGR ≤ 28)
• High luminous efficacy suitable for demanding visual tasks
• IP50 standard; IP54 for vertical mounting — suitable for damp areas
• Selectable finishes: black RAL 9005, natural anodised, white RAL 9003
• Awards: Iconic Award and iF Design Award

Applications & Lighting effect

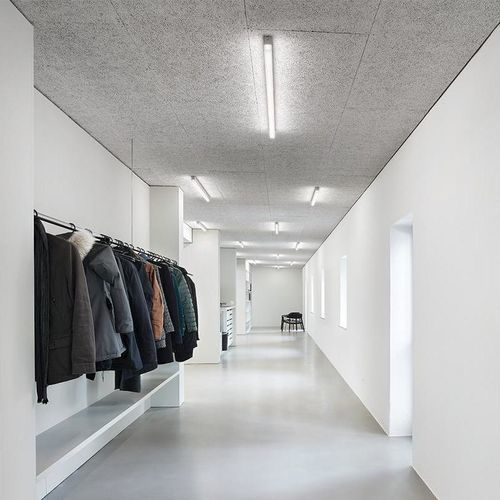

The soft, homogeneous light produced by the METRON with opal diffuser is suitable for a wide range of visual tasks. With good glare control, the surface-mounted and pendant variants are ideal for circulation zones, movement areas and rooms requiring even, wide-beam illumination.

Product variants

• Available as surface-mounted luminaires and pendant luminaires
• Opal diffuser variants with lengths/diameters from 600 mm up to 1800 mm

Technical specifications

• Mounting: Surface-mounted on ceiling or wall with plug connection (surface-mounted version)
• Pendant mounting: Pendant suspension possible (pendant set ordered separately)
• Feed-through wiring: 5 × 1.5 mm² for series mounting
• Housing: Extruded aluminium
• Optics: Acrylic opal diffuser; UGR ≤ 28
• Light source: Integrated LEDs, CRI >90; colour temperatures available: 2700 K, 3000 K, 4000 K
• Service life: 50'700 h (L90 B10, Ta 25 °C) (as stated on source)
• Control gear: PS 230 V / 50 Hz
• Protection class: I
• Ingress protection: IP50 (standard) / IP54 for vertical mounting
• Energy efficiency class: D
• Finishes: black RAL 9005, natural anodised, white RAL 9003
