Hanging light fixture METRON

surface-mountedLEDlinear

Overview

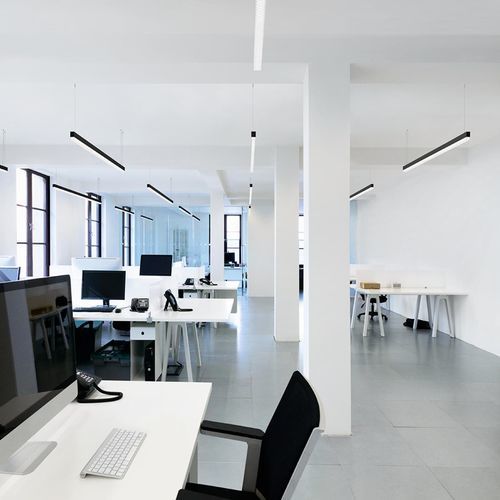

METRON is a modular, high-efficiency LED lighting system designed for professional architectural and office projects. The Office variant, fitted with an acrylic glass diffuser with microprism optics, provides standard-compliant workplace illumination. Modules can be combined for continuous lines or used as individual surface-mounted or pendant luminaires.

Product highlights

• Design: Daniel Kübler
• Microprism acrylic diffuser for optimized workplace illumination and effective glare control
• Uniform, pleasant light distribution for high visual comfort
• Protection: IP50 (standard); IP54 for vertical installation — suitable for use in humid zones when required
• Ceiling integration colours: black RAL 9005, natural anodised, white RAL 9003
• Design recognition: e.g. iconic award, iF Design Award

Product variants

• Surface-mounted luminaires (Office)
• Pendant luminaires (Office) — pendant set ordered separately
• Available lengths (examples): 1200–1800 mm (acrylic glass diffuser with microprism optics)

Lighting effect
Homogeneous, wide-beam distribution delivering soft, uniform light ideal for demanding visual tasks and promoting concentration in office environments. Good glare control (UGR ≤ 22) and high luminous efficacy support energy-efficient installations.

Technical specifications

• Mounting: ceiling or wall mounting with plug connection; pendant mounting available (pendant set ordered separately)
• Feed-through wiring: 5 x 1.5 mm² for series connection
• Housing: extruded aluminium
• Optics: acrylic glass diffuser with microprism optics, UGR ≤ 22
• Light source: integrated LED, CRI > 90, selectable colour temperatures 3000 K or 4000 K
• Service life: 50,000 h L90 B10 (Ta 25° C)
• Control gear: PS 230 V / 50 Hz
• Protection class: I
• Ingress protection: IP50 (standard); IP54 for vertical mounting
• Energy efficiency class: D
