LED strip light MILUM LIGHTLINE

IP20IP44opal

Overview
With its miniaturized and compact design and pleasant diffuse lighting effect, the MILUM Lightline is a convincing solution. The configurator allows planning continuous lightlines down to the millimetre. MILUM Lightline is an effective tool for general lighting in private and commercial sectors.

Design
MILUM is characterised by detailed workmanship, a consistent design language and the use of high-quality materials. The miniaturized lighting system opens up a broad design scope and supports user-specific, effective lighting concepts for high-quality residential and commercial applications.

Designs & Variants

• Available as direct-beam and omnidirectional modules with integrated through-wiring.
• Omnidirectional diffuse module also available as single luminaire without feed-through wiring and with a height-reduced mounting rail.
• Available as single luminaire (I-shape) or as a continuous lighting system (Lightline).
• Lengths / modular sizes in the range 600–1800 mm (various product variants).
• Mounting variants: surface-mounted (ceiling/wall), pendant and installation on mounting rails (tool-less installation on mounting rails; mounting rails/order accessories may be required separately).

Lighting effect

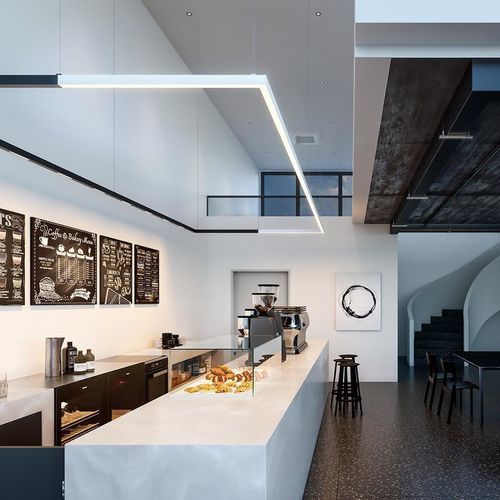

The MILUM Lightline delivers perfectly homogeneous, soft light without shadowing. Suitable as a single luminaire or as a continuous system for general lighting tasks (kitchen, corridor, stairwell). IP44 rated versions available for wet-room/bathroom applications.

Optical & Visual Comfort
The system offers homogeneous light with low glare (UGR ≤ 25) and high colour fidelity (CRI > 90), providing optimum visual comfort for general lighting tasks.

Selectable colour variations

• Natural anodised
• Black RAL 9005
• White RAL 9003

Product variants examples (shop listing)

• Single luminaire with opal diffuser (600–1800 mm) — omnidirectional — mounted luminaires
• Single luminaire with opal diffuser (600–1800 mm) — omnidirectional — pendant luminaires
• Light system Lightline (600–1800 mm) — omnidirectional — mounted and pendant luminaires
• Light system Lightline (600–1800 mm) — direct-beam — mounted and pendant luminaires
• Lightline configurator variants: direct-beam and omnidirectional configurator modules for tailored continuous installations

Notes on performance
Lumen specifications correspond to the measured values including opal acrylic glass cover. For certain configurator variants the last 300 mm / 150 mm can be separated by the user (every 25 mm) for luminaire length 600 mm; mounting rails and control gear may be ordered separately depending on variant.

Technical specifications

• Mounting: ceiling or wall (depending on variant); for pendant variants: for mounting on the ceiling; many variants available for tool-less installation on mounting rails (mounting rails often ordered separately).
• Lamp housing: extruded aluminium; finishes: natural anodised, black RAL 9005, white RAL 9003.
• Optics: opal acrylic glass diffuser; UGR ≤ 25.
• Lamps: integrated LED, CRI > 90; colour temperatures available: 2700 K, 3000 K and 4000 K (depending on variant).
• Service life: 50,000 h L90 B10 (Ta 25° C).
• Control gear: PS 230 V / 50 Hz (integrated or specified per variant).
• Lamp protection class: typically Class I (some single-luminaire I-shape / certain configurator variants indicate Class III for specific versions).
• Protection level: IP44 for selected bathroom/wet-room single luminaires and mounted variants; other variants IP20 (variant-dependent).
• Energy efficiency class: E (as specified per variant).
• Available beam types: omnidirectional (diffuse) and direct-beam modules; through-wiring (feed-through) available for continuous rows.
• Modular lengths: 600–1800 mm (various product and configurator variants).
