Surface-mounted light fixture ARVA

LEDflexibleIP54

Overview
ARVA provides a universal surface-mounted luminaire suitable for wall and ceiling installation. It combines aesthetic lighting with robust construction for varied indoor and covered outdoor applications. The sealed die-cast aluminium housing and diffuser protect the luminaire from dust and insects while ensuring long service life.

Design
Daniel Kübler

Product highlights

• Versatile use as wall or ceiling-mounted luminaire.
• High luminous output with homogeneous light distribution.
• Durable die-cast aluminium housing with sealed diffuser for protection against dust and insects.
• High colour rendering and controlled glare for comfortable lighting.
• IP-rated options suitable for covered outdoor zones.

Individual interior design
Available for single installation or grouped layouts; offered in three colour variants to integrate with interior concepts.

Colour variants

• Black RAL 9005
• White RAL 9003
• White aluminium

Lighting effect

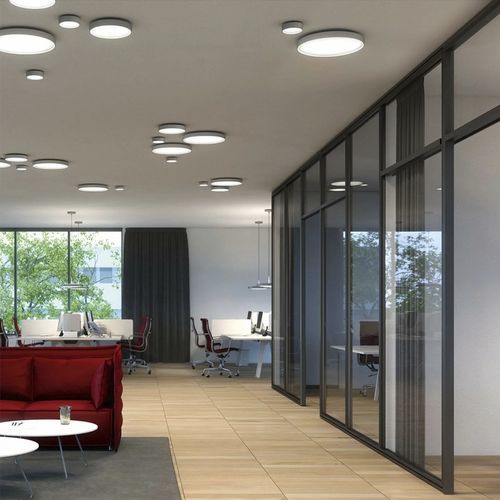

Provides homogeneous, wide-beam illumination. The soft wide-angle light is ideal for occupied zones and circulation areas. Multiple mounting options (wall or ceiling) enable flexible application scenarios.

Technical specifications

• Mounting: Ceiling or wall mounting.
• Lamp housing: Die-cast aluminium.
• Optics: Fine-matt acrylic diffuser, UGR ≤ 25.
• Lamps: Integrated LED, CRI > 90; colour temperatures 2700 K or 3000 K (4000 K on request).
• Service life: 50,000 h L90 B10 (Ta 25 °C).
• Control gear: PS 230 V/50 Hz; constant current 250 mA (order separately) for certain variants.
• Protective class: I.
• Protection rating: IP54 (some variants) / IP43 (other variants).
• Energy efficiency class: D.
• Glare / performance indicators: CRI > 90, UGR ≤ 25.
