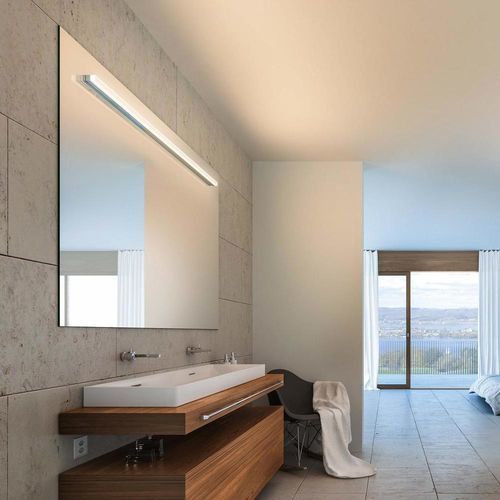

Surface-mounted light fixture SPINALED

LEDlinearIP54

Overview
SPINAled is the latest development of the SPINA collection, combining an acrylic (opal) diffuser with options for surface-mounted and pendant configurations. The product is engineered for efficient LED lighting performance, precise glare control and a clean architectural appearance. Design: Daniel Kübler / Erwin Egli.

Product highlights

• Acrylic (opal) diffuser for soft, homogeneous wide-beam illumination
• Linear lens variant (clear/matt) for high brilliance and defined shadows
• Dot-matrix option for optimized glare control
• Filigree pendant suspension design with adjustable cables
• Selectable finishes (natural anodised, chrome polished) and external control-gear options
• Versatile applications including universal lighting, discreet interior solutions, wet zones and rain-protected outdoor areas (for protected variants)

Available variants / Typical configurations

• Surface-mounted luminaires with acrylic diffuser, diameters 600–1500 mm
• Surface-mounted luminaires with acrylic diffuser and external control gear (IP54 splash-proof option)
• Pendant luminaires with acrylic diffuser, lengths 1200–1500 mm
• Surface-mounted luminaires with acrylic diffuser and dot-matrix (600–1500 mm)
• Pendant luminaires with linear lens (1200–1500 mm), 60° beam angle

Lighting effect & Applications
SPINAled with the opal diffuser delivers soft, uniform light suitable for a wide range of visual tasks. Good glare control makes both surface-mounted and pendant versions appropriate for office, retail and public spaces. The linear-lens pendant produces brilliant, material-accentuating illumination (60° beam). Selected surface-mounted variants with external control gear achieve IP54 and are suitable for wet zones and rain-protected outdoor areas.

Awards / Recognition
Recognised by the German Design Award (visual reference on product page).

Technical specifications

• Mounting: Ceiling or wall mount; pendant versions: 2 nickel-plated steel-cable suspensions, length 2500 mm, continuously adjustable, 2 cable holders, transparent cable 2 x 0.35 mm²
• Housing: Extruded aluminium (options include matt anodised with passive cooling for pendant versions); finishes: natural anodised, chrome polished
• Optics: Acrylic opal diffuser (UGR ≤28). Linear lens variant: 60° beam, UGR ≤22. Dot-matrix variants: opal diffuser with dot matrix, UGR ≤28
• Light source: Integrated LED, CRI >90; colour temperatures: 2700 K, 3000 K, 4000 K
• Service life: 50,700 h L90 B10 (Ta 25°C)
• Control gear: PS 230 V/50 Hz (standard); electronic gear (EVG) 230 V/50 Hz for some external-control versions (order separately); some variants: PS 230 V/50 Hz in separate housing
• Protection class: I (some external-control variants: III)
• Ingress protection (IP): IP20 standard; IP54 for surface-mounted variants with external control gear (splash-proof)
• Energy efficiency class: D
• Glare control: UGR values depend on variant (examples: UGR ≤28 for opal diffuser; UGR ≤22 for linear lens)
