Surface-mounted spotlight SPARK

LEDtubularIP54

Overview

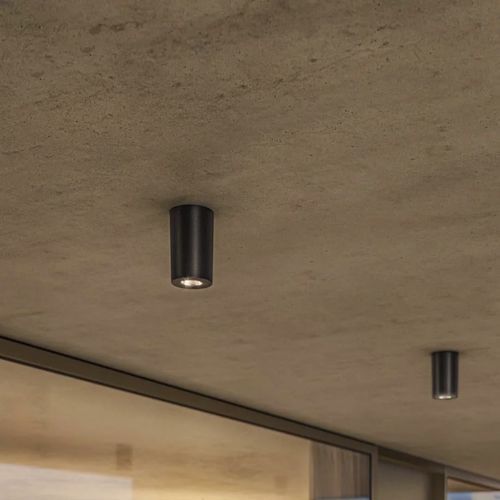

Surface-mounted ceiling lamp with integrated control gear designed for new build and renovation projects. Rated IP54 for wet zones and protected outdoor areas. Available in three housing colours and four beam angles, in Single Color or Tunable White variants. Designed by RIBAG Design Studio with high-precision Bartenbach reflectors for excellent glare control and defined light cones.

Product highlights

• Design: RIBAG Design Studio — minimalist shape with effective optical performance; Bartenbach reflectors provide precise beam control and low glare.
• Splash water protection: Integrated cover glass and IP54 rating make the luminaire suitable for wet rooms and covered outdoor locations.
• Easy installation: Surface mounting without ceiling cavity; drilling template and membrane for ceiling-side IP54 protection included.
• Three housing colours: Black, white and white aluminium for integration into various interiors.
• Four beam angles: High-precision Bartenbach reflectors available in 16°, 30°, 50° and 70° for spot, flood and wide distributions.
• Light quality: High colour rendering (CRI > 90) and low colour deviation (SDCM 2) for consistent visual comfort.
• Tunable White option: Adjustable colour temperature from 2200 K to 5000 K for atmosphere and task tuning.

Product variant

• Single Color: fixed CCT (2700 K or 3000 K)
• Tunable White: 2200 K–5000 K (continuously adjustable)
• Housing colours: black, white, white aluminium
• Optics / beam angles: Bartenbach reflectors 16°, 30°, 50°, 70°

Technical specifications

• Mounting: Surface-mounted ceiling installation
• Housing: Die-cast aluminium
• Optics: High-precision Bartenbach reflectors (16°, 30°, 50°, 70°)
• Lamps: Integrated LEDs, CRI > 90, SDCM 2; 2700 K, 3000 K or Tunable White 2200 K–5000 K
• Service life: 50,000 h L90 B10 (Ta 25 °C)
• Control gear: PS 230 V / 50 Hz (integrated)
• Protection class: I
• Ingress protection: IP54
• Energy efficiency class: D
