PE manhole 7600070010

Product overview

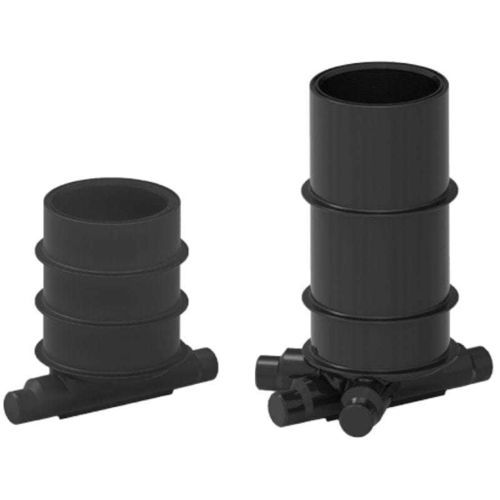

A rotationally moulded polyethylene (PE) sewage shaft designed for DN600 installation openings. Available with pre-formed channel bases in 1/1 (straight-through) and 3/1 (three-way) configurations. Bases include prepared sockets for connection to standard PVC/KG and corrugated pipes to simplify on-site assembly.

Main features

• Material: Polyethylene (PE)
• Manufacturing: rotational moulding (monolithic production)
• Watertightness: permanently leak-tight due to monolithic construction
• Lightweight for easier transport and faster installation
• Typical wall thickness: 6–8 mm
• Base variants for multiple pipe connection layouts
• Standard: DIN EN 13598-2:2009 (resistance, watertightness, load-bearing)

Connection options / inlet & outlet

• Prepared for pipe connections: DN160, DN200 and DN250 (depending on base variant)
• Sockets prepared for DN160 and DN200 KG pipes; additional PVC/KG and corrugated pipe connections possible via prepared openings

Variants

• 1/1 base — straight-through pre-formed channel
• 3/1 base — pre-formed base for multiple line connections (three-way)

Technical data and dimensions — Variant 1/1
Shaft height [H] | Connecting pipe | Code 1/1 | Code 3/1 | Plan (PDF)
1000 mm | Ø160/200 | 7600070010 | 7600069680 | drawing available
1250 mm | Ø160/200 | 7600070020 | 7600069650 | drawing available
1500 mm | Ø160/200 | 7600070030 | 7600069660 | drawing available
1750 mm | Ø160/200 | 7600070040 | 7600069670 | drawing available
2000 mm | Ø160/200 | 7600070050 | 7600069810 | drawing available
2250 mm | Ø160/200 | 7600070060 | 7600069820 | drawing available
2500 mm | Ø160/200 | 7600070070 | 7600069830 | drawing available
2750 mm | Ø160/200 | 7600070080 | 7600069840 | drawing available
3000 mm | Ø160/200 | 7600070090 | 7600069850 | drawing available

Technical data and dimensions — Variant 3/1
Shaft height [H] | Connecting pipe (option A) | Code (A) | Connecting pipe (option B) | Code (B)
1000 mm | Ø160/200/250 | 7600057000 | Ø160/200/250/315 | 7600805010
1250 mm | Ø160/200/250 | 7600057030 | Ø160/200/250/315 | 7600805020
1500 mm | Ø160/200/250 | 7600057010 | Ø160/200/250/315 | 7600805030
1750 mm | Ø160/200/250 | 7600057020 | Ø160/200/250/315 | 7600805040
2000 mm | Ø160/200/250 | 7600059220 | Ø160/200/250/315 | 7600805050
2250 mm | Ø160/200/250 | 7600059230 | Ø160/200/250/315 | 7600805060
2500 mm | Ø160/200/250 | 7600059240 | Ø160/200/250/315 | 7600805070
2750 mm | Ø160/200/250 | 7600059250 | Ø160/200/250/315 | 7600805080
3000 mm | Ø160/200/250 | 7600059260 | Ø160/200/250/315 | 7600805090

Notes / additional information

• Available shaft heights up to 5 m within the product line (listed heights available)
• Pre-formed channel versions (1/1 and 3/1) accommodate a wide range of on-site connection layouts
• Designed for long service life and resistance to common environmental influences

Technical specifications

• Series: RoShaft
• Diameter: DN600
• Material: Polyethylene (PE)
• Production method: rotational moulding (monolithic)
• Wall thickness: 6–8 mm
• Watertightness: 100% (monolithic manufacture)
• Standards: DIN EN 13598-2:2009
• Available base types: 1/1 and 3/1
• Available shaft heights: 1000, 1250, 1500, 1750, 2000, 2250, 2500, 2750, 3000 mm (and options up to 5 m)
• Supported inlet/outlet diameters: DN160, DN200, DN250 (and up to DN315 with specific 3/1 configurations)
• Typical product codes (selection): 7600070010, 7600070020, 7600070030, 7600070040, 7600070050, 7600070060, 7600070070, 7600070080, 7600070090 (1/1 variants); 7600057000, 7600057010, 7600057020, 7600057030, 7600059220, 7600059230, 7600059240, 7600059250, 7600059260 (3/1 variants)
