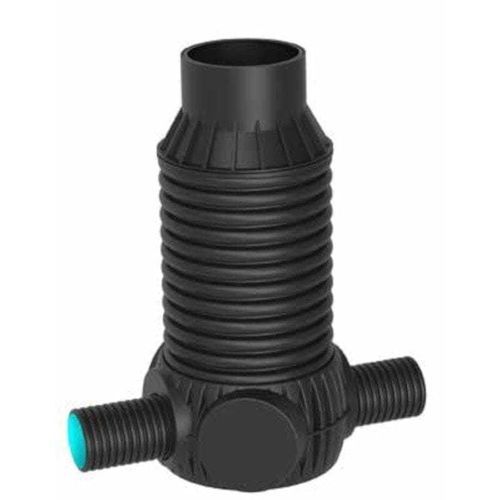

Polyethylene manhole 5737

Product
Shaft with two-layer bottom RoShaft DN800 3/1 for sewer and drainage networks, supplied in multiple heights with standardized connection diameters.

DN800 dimensions

• 1000 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5737
• 1250 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5738
• 1500 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5181
• 1750 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5182
• 2000 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5183
• 2250 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5184
• 2500 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5185
• 2750 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5186
• 3000 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5187
• 3250 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5188
• 3500 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5189
• 3750 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5190
• 4000 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5191
• 4250 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5192
• 4500 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5193
• 4750 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5194
• 5000 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5195
• 5250 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5196
• 5500 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5197
• 5750 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5198
• 6000 mm — Ø200 / Ø250 / Ø315 / Ø400 — Code: 5199

Options for body construction

• Shaft body made using rotomoulding technology
• Ribbed tube shaft body

Notes
All images published on the RotoEco website are symbolic.

Technical specifications

• Series / model: RoShaft
• Product type: Shaft with two-layer bottom
• Nominal diameter: DN800
• Available shaft heights (mm): 1000; 1250; 1500; 1750; 2000; 2250; 2500; 2750; 3000; 3250; 3500; 3750; 4000; 4250; 4500; 4750; 5000; 5250; 5500; 5750; 6000
• Connecting pipe diameters: Ø200 / Ø250 / Ø315 / Ø400 (for all listed heights)
• Product codes: see table mapping height → code (e.g. 1000 mm → 5737; 1250 mm → 5738; 1500 mm → 5181; ...; 6000 mm → 5199)
• Body construction options: rotomoulded shaft body or ribbed tube shaft body
