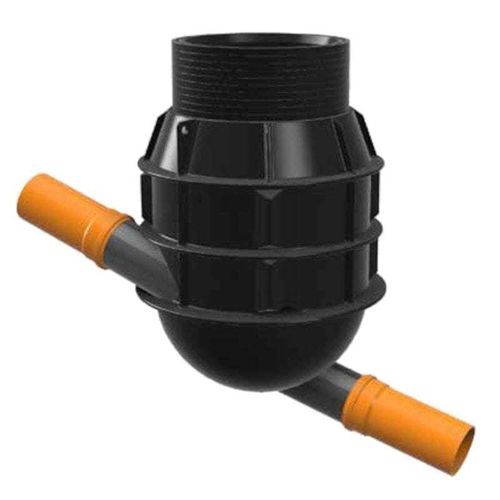

Polyethylene manhole 7600058500

Product overview
A compact, leak‑tight energy‑dissipating manhole designed to reduce high flow velocities in sewer and stormwater systems. The unit accepts tangential inflow and guides the flow along the circular base toward the outlet, dissipating hydraulic energy to limit erosion and downstream overload. Available in nominal diameters DN 800 and DN 1000 and in multiple heights up to 5 m. When installed with a suitable manhole cover, the unit is compatible with traffic areas.

Key features

• Energy dissipation via tangential inflow and controlled circular flow along the manhole base
• Compact, leak‑tight construction suitable for constrained installation sites
• Installation‑friendly design for straightforward connection and assembly
• Prepared for connection to PVC, PE, ribbed and other common pipe systems

Outlet / connection options

• Outlet with PE pipe and sliding coupling
• Outlet with coupling for ribbed pipe systems

Technical data & dimensions (selection)
Shaft height [H] | Code
850 mm | 7600058500
1100 mm | 7600058060
1350 mm | 7600058070
1600 mm | 7600058510
1850 mm | 7600058520
2100 mm | 7600058530
2350 mm | 7600058050
2600 mm | 7600058020

FAQ (highlights)

• Purpose: reduce high flow velocities to prevent channel erosion and hydraulic overloading
• Flow guidance: tangential inflow directs water along the circular shaft floor toward the outlet to dissipate energy
• Sizes available: nominal diameters DN 800 and DN 1000; heights up to 5 m
• Pipe compatibility: prepared for PVC, PE, ribbed and other common pipe systems

Technical specifications

• Nominal diameter: DN 800 (product shown); also available in DN 1000
• Example heights: 850 mm, 1100 mm, 1350 mm, 1600 mm, 1850 mm, 2100 mm, 2350 mm, 2600 mm
• Leak‑tight, compact energy‑dissipating manhole for tangential inflow
• Suitable for installation in trafficked areas when fitted with appropriate manhole cover
• Prepared for connections to PVC, PE, ribbed and other pipe systems
• Outlet variants: PE pipe with sliding coupling; coupling for ribbed pipe
