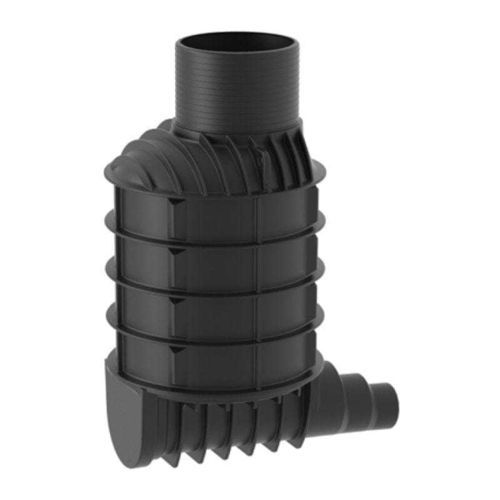

PE manhole 7600069730

Overview
A compact, leak-tight, and installation-friendly solution for reliable sewer infrastructure.

General description
Sewer manholes are rotationally molded from polyethylene (PE). Available diameters: DN400, DN600, DN800 and DN1000. Heights up to 5 m are standard; DN1000 variants can reach 6 m in specific configurations. Features include long service life, permanent watertightness, resistance to environmental influences, low weight and rapid installation. Typical wall thickness: 6–8 mm. Multiple base configurations accommodate different pipe types.

Product variants

• RoShaft DN1000 1/1 (single inlet / single outlet)
• RoShaft DN1000 3/1 (three inlets / one outlet; common inlet angles: 120°, 180°, 240°)
• Multiple connecting-pipe options depending on project and pipe type: Ø160, Ø200, Ø250, Ø315, Ø400, Ø500, Ø630, Ø800, Ø1000

Sewer shaft DN1000 1/1 — Description
The DN1000 1/1 shaft (single inlet/single outlet) allows connection to sewage or stormwater pipelines with Ø250, Ø315 or Ø400 diameters. Connections may be made using inlet seals and sliding couplings, or according to project requirements with ribbed or other pipe types.

Technical data and dimensions DN1000 1/1

• 1250 mm — Ø250/315/400 — Code: 7600069730
• 1500 mm — Ø250/315/400 — Code: 7600069580
• 1750 mm — Ø250/315/400 — Code: 7600069590
• 2000 mm — Ø250/315/400 — Code: 7600069600
• 2250 mm — Ø250/315/400 — Code: 7600069610
• 2500 mm — Ø250/315/400 — Code: 7600069620
• 2750 mm — Ø250/315/400 — Code: 7600069630
• 3000 mm — Ø250/315/400 — Code: 7600069640
• 3250 mm — Ø250/315/400 — Code: 7600069760
• 3500 mm — Ø250/315/400 — Code: 7600069740
• 3750 mm — Ø250/315/400 — Code: 7600069770
• 4000 mm — Ø250/315/400 — Code: 7600069750
• 4250 mm — Ø250/315/400 — Code: 7600069780
• 4500 mm — Ø250/315/400 — Code: 7600069920
• 4750 mm — Ø250/315/400 — Code: 7600069790
• 5000 mm — Ø250/315/400 — Code: 7600069800
• 5250 mm — Ø250/315/400 — Code: 7600069970
• 5500 mm — Ø250/315/400 — Code: 7600069980
• 5750 mm — Ø250/315/400 — Code: 7600069990
• 6000 mm — Ø250/315/400 — Code: 7600070000

Technical data and dimensions DN1000 3/1

• 1250 mm — Ø250/315/400 — Code: 760002100
• 1500 mm — Ø250/315/400 — Code: 760002101
• 1750 mm — Ø250/315/400 — Code: 760002102
• 2000 mm — Ø250/315/400 — Code: 760002103
• 2250 mm — Ø250/315/400 — Code: 760002104
• 2500 mm — Ø250/315/400 — Code: 760002105
• 2750 mm — Ø250/315/400 — Code: 760002106
• 3000 mm — Ø250/315/400 — Code: 760002107
• 3250 mm — Ø250/315/400 — Code: 760002108
• 3500 mm — Ø250/315/400 — Code: 760002109
• 3750 mm — Ø250/315/400 — Code: 7600021100
• 4000 mm — Ø250/315/400 — Code: 7600021110
• 4250 mm — Ø250/315/400 — Code: 7600021120
• 4500 mm — Ø250/315/400 — Code: 7600021130
• 4750 mm — Ø250/315/400 — Code: 7600021140
• 5000 mm — Ø250/315/400 — Code: 7600021150
• 5250 mm — Ø250/315/400 — Code: 7600021160
• 5500 mm — Ø250/315/400 — Code: 7600021170
• 5750 mm — Ø250/315/400 — Code: 7600021180
• 6000 mm — Ø250/315/400 — Code: 7600021190

DN1000 1/1 — variants with larger connecting pipes (examples)

• 1250 mm — Ø500/600 — Code: 7600058410
• 1500 mm — Ø500/600 — Code: 7600058230
• 1750 mm — Ø500/600 — Code: 7600058240
• 2000 mm — Ø500/600 — Code: 7600058250
• 2250 mm — Ø500/600 — Code: 7600058260
• 2500 mm — Ø500/600 — Code: 7600058270
• 2750 mm — Ø500/600 — Code: 7600058280
• 3000 mm — Ø500/600 — Code: 7600058290
• 3250 mm — Ø500/600 — Code: 7600058300
• 3500 mm — Ø500/600 — Code: 7600058310
• 3750 mm — Ø500/600 — Code: 7600058320
• 4000 mm — Ø500/600 — Code: 7600058330
• 4250 mm — Ø500/600 — Code: 7600058340
• 4500 mm — Ø500/600 — Code: 7600058350
• 4750 mm — Ø500/600 — Code: 7600058360
• 5000 mm — Ø500/600 — Code: 7600058370
• 5250 mm — Ø500/600 — Code: 7600058420
• 5500 mm — Ø500/600 — Code: 7600058430
• 5750 mm — Ø500/600 — Code: 7600058440
• 6000 mm — Ø500/600 — Code: 7600058450

DN1000 1/1 — variants with Ø800/1000 connecting pipes (examples)

• 2000 mm — Ø800/1000 — Code: 7600058120
• 2250 mm — Ø800/1000 — Code: 7600058130
• 2500 mm — Ø800/1000 — Code: 7600058140
• 2750 mm — Ø800/1000 — Code: 7600058090
• 3000 mm — Ø800/1000 — Code: 7600058160
• 3250 mm — Ø800/1000 — Code: 7600058170
• 3500 mm — Ø800/1000 — Code: 7600058180
• 3750 mm — Ø800/1000 — Code: 7600058190
• 4000 mm — Ø800/1000 — Code: 7600058100
• 4250 mm — Ø800/1000 — Code: 7600056000
• 4500 mm — Ø800/1000 — Code: 7600056010
• 4750 mm — Ø800/1000 — Code: 7600056020
• 5000 mm — Ø800/1000 — Code: 7600056030
• 5250 mm — Ø800/1000 — Code: 7600056040
• 5500 mm — Ø800/1000 — Code: 7600056050
• 5750 mm — Ø800/1000 — Code: 7600056060
• 6000 mm — Ø800/1000 — Code: 7600056070

Connection options and accessories

• PVC pipe connections (multiple Ø options available)
• Connection with inlet seal
• Sliding couplings (KG socket / slide coupler) for secure outlet connections
• PE welded pipe connections and PE‑to‑PVC couplers
• Adapters for corrugated/ribbed pipes (adapter hubs)
• Integrated connection pipes with DN160 and DN200 in some 1/1 and 3/1 variants
• Integrated internal stairs available on some DN1000 bodies for access

Standards
Produced in compliance with DIN EN 13598-2:2009 (requirements for resistance, watertightness and load‑bearing capacity).

Technical characteristics / specifications

• Material: polyethylene (PE), rotational molding
• Available diameters: DN400, DN600, DN800, DN1000
• DN1000 heights available: 1250 mm to 6000 mm (depending on configuration)
• Wall thickness (typical): 6–8 mm
• Watertight monolithic construction (rotationally molded)
• Resistance to environmental influences; designed for long service life
• Connection options: inlet seals, sliding couplers, welded PE connections, PVC couplings, adapter hubs for corrugated/ribbed pipes
• Supported outlet/inlet diameters: Ø160, Ø200, Ø250, Ø315, Ø400, Ø500, Ø630, Ø800, Ø1000 (variant dependent)
• Compliance: DIN EN 13598-2:2009
• Typical use: sewage and stormwater manholes; multi‑inlet configurations (3/1) for complex junctions
