Rainwater retention tank ROTERRA 2450

water storageundergroundclosed

Overview
The new generation of Roterra 2450 water tanks offers easy, cost-effective installation, maintenance and cleaning. Rainwater collectors reduce mains water consumption and allow savings on utility costs. Roterra 2450 systems are also suitable for properties without existing plumbing.

Key benefits

• Elliptical profile increases usable volume relative to footprint.
• Reduced transport costs (large volumes can be transported on semi-trailers).
• Loading and unloading simplified thanks to marked lifting points.
• Easier and less expensive installation: shorter excavation length and lower backfill material requirements.

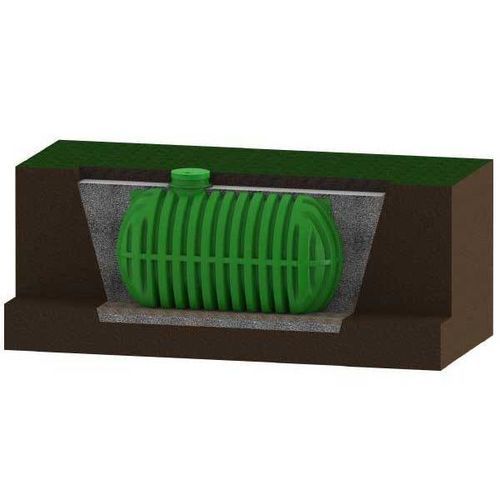

• Excellent structural performance: elliptical shape distributes vertical soil and groundwater pressures optimally.
• Polyethylene recyclable at end of life.

Technical elements and features (extract)

• DN 600 cover with seal and hinged opening (load capacity up to 200 kg for the DN 600 version).
• Optional DN 800 cover with additional adapter (adjustable riser height according to terrain).
• Inlet and outlet: multiple possible connection positions on the tank.
• Flat base for quick installation and reduced backfill.
• Connection options on sides and ends depending on configuration.

Table: Dimensions and weight (extract)
Volume [L] - Code - Dimensions A x B x C [mm] - Revision opening [mm] - Total weight [kg]
20.000 - 7100062670 - 4690 x 2425 x 2700 – 3000 - Ø600 - 650
25.000 - 7100062700 - 5720 x 2425 x 2700 – 3000 - Ø600 - 780
30.000 - 7110030000 - 6550 x 2425 x 2700 – 3000 - 2 x Ø600 - 990
35.000 - 7110035000 - 7530 x 2425 x 2700 – 3000 - 2 x Ø600 - 1140
40.000 - 7110040000 - 8510 x 2425 x 2700 – 3000 - 2 x Ø600 - 1290
45.000 - 7110045000 - 9870 x 2425 x 2700 – 3000 - 3 x Ø600 - 1560
50.000 - 7110050000 - 10850 x 2425 x 2700 – 3000 - 3 x Ø600 - 1700
55.000 - 7110055000 - 11500 x 2425 x 2700 – 3000 - 3 x Ø600 - 1770
60.000 - 7110060000 - 12480 x 2425 x 2700 – 3000 - 3 x Ø600 - 1920
65.000 - 7110065000 - 13460 x 2425 x 2700 – 3000 - 3 x Ø600 - 2070

Hotspots / Key features

• DN 600 cover with seal and hinged opening for effective watertightness.
• Optional DN 800 cover with adapter (hinged opening possible, adjustable riser).
• Multiple possible connection points for inlet/outlet.
• Flat base: quick installation and reduced backfill materials.
• New elliptical shape provides excellent static resistance.

Specifications / Technical data

• Material: polyethylene (PE), recyclable.
• Wall thickness: 8–14 mm.
• Type: underground tanks (excavation required).
• Available volume range: 20 000 L to 65 000 L (various product codes).
• Revision openings: Ø600 standard; some sizes with 2x or 3x Ø600; DN800 option with adapter.
• DN 600 cover load capacity: up to 200 kg (PE version).
• Flat base for optimized installation and backfill.
• Elliptical profile increases volume relative to footprint and reduces installation and transport costs.
