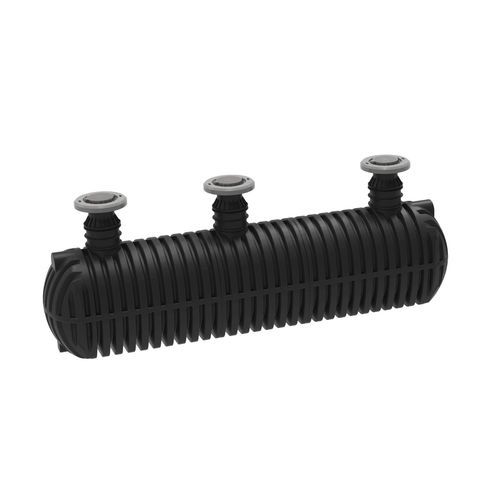

Rainwater retention tank RODRIVE

water storagewastewater treatmentunderground

Presentation
Professional underground tanks designed for installation beneath traffic surfaces. The RoTerra Drive (RoDrive) tanks are engineered for burial under parking areas, roads and driveways. They provide retention and storage for rainwater, wastewater or firefighting water while optimizing space normally reserved for vehicle circulation.

Applications

• Rainwater harvesting
• Wastewater storage
• Fire water reserve

Key advantages
Certified design for integration under paved surfaces; modular connection options to increase total capacity (parallel or series); space-adaptable configurations; ready for integration into larger water management systems.

Installation
Use lifting slings attached to the tank's anchor points marked by a "white hook" on each side for handling and placement. Tanks are supplied with the required fixing points and specific installation instructions (installation visuals and photos available).

Connections and networking
No predefined limit for connecting tanks together. All RoTerra Drive units are prepared for interconnection: parallel, series or combined layouts according to available space.

Recommended additional equipment
Various accessories and equipment are available to outfit the tanks (examples and options listed in the product documentation).

Available dimensions (excerpt)
Product — Code — Dimensions mm — Recommended equipment — Datasheet available
Tank RoTerra 20,000 L, Drive, BPP — 7100062672 — 4690 x 2450 x 3720 — CK8 + IC6 — yes
Tank RoTerra 25,000 L, Drive, BPP — 7100062702 — 5720 x 2420 x 2700 — CK8 + IC6 — yes
Tank RoTerra 30,000 L, Drive, BPP — 7110030002 — 6550 x 2425 x 2700 — 2 x CK8 + 2 x IC6 — yes
Tank RoTerra 35,000 L, Drive, BPP — 7110035002 — 7530 x 2420 x 2700 — 2 x CK8 + 2 x IC6 — yes
Tank RoTerra 40,000 L, Drive, BPP — 7110040002 — 8510 x 2425 x 2700 — 2 x CK8 + 2 x IC6 — yes
Tank RoTerra 45,000 L, Drive, BPP — 7110045002 — 9870 x 2420 x 2700 — 3 x CK8 + 3 x IC6 — yes
Tank RoTerra 50,000 L, Drive, BPP — 7110050002 — 10850 x 2425 x 2700 — 3 x CK8 + 3 x IC6 — yes
Tank RoTerra 55,000 L, Drive, BPP — 7110055002 — 11500 x 2420 x 2700 — 3 x CK8 + 3 x IC6 — yes
Tank RoTerra 60,000 L, Drive, BPP — 7110060002 — 12480 x 2425 x 2700 — 3 x CK8 + 3 x IC6 — yes
Tank RoTerra 65,000 L, Drive, BPP — 7110065002 — 13600 x 2425 x 2700 — 3 x CK8 + 3 x IC6 — yes

Visuals
Product and installation images available (photos, integration diagrams, installation images, connection examples and accessory visuals).

Technical characteristics / specifications

• Product family: RoTerra Drive (RoDrive)
• Type: underground tanks for traffic surfaces
• Available capacities: 20,000 L to 65,000 L (variants listed above)
• Main dimensions: see table (width x depth x height in mm per model)
• Internal article codes listed for each capacity (e.g. 7100062672 for 20,000 L, 7110065002 for 65,000 L)
• Recommended equipment: combinations CK8 and IC6 depending on capacity (e.g. CK8 + IC6, 2 x CK8 + 2 x IC6, 3 x CK8 + 3 x IC6)
• Ready for multiple connections (parallel/series)
• Fixing/handling: lifting slings to anchor points marked by white hooks
• Datasheets available for each capacity (technical PDF documents)
