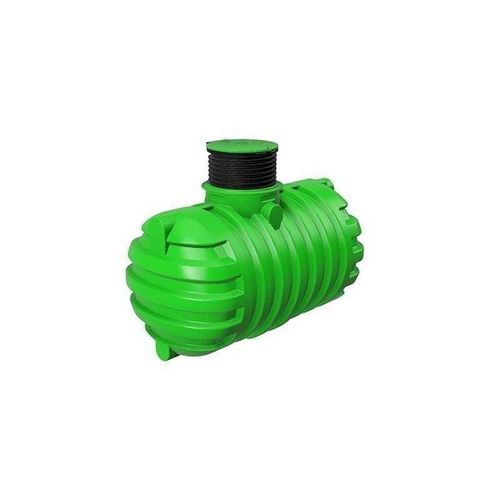

Rainwater tank ROTERRA 1400

water storageundergroundpolyethylene

Description
Roterra rainwater collectors are manufactured in polyethylene (PE), an environmentally friendly material, and are designed for burial underground. Access to the interior of the tank is provided by flat hinged covers with a diameter of 600 mm, mounted on a telescopic cantilever that allows easy adjustment of the tank embedding to site conditions. A gasket is fitted on the cover to ensure watertightness.

The inlet connections are made according to the project (1/2", 3/4", 1", 2") for water distribution or via PVC pipes DN 32 to DN 400 for gravity overflows.

Roterra 1400 rainwater harvesting tanks are available in sizes ranging from 2,200 L to 3,300 L.

Connection options

• Inlet fittings on request: 1/2", 3/4", 1", 2"
• Gravity overflows: PVC pipes DN 32 to DN 400
• Cover: flat hinged covers Ø600 mm, mounted on telescopic cantilever, sealing gasket

Model and dimensions table
Volume [L] | Code | Dimensions A x B x C [mm] | Inspection opening [mm] | Total weight [kg]
2,200 | 7100067160 | 1840 x 1400 x 1600 – 1900 | Ø600 | 100
2,600 | 7100067180 | 2150 x 1400 x 1600 – 1900 | Ø600 | 115
3,000 | 7100067170 | 2400 x 1400 x 1600 – 1900 | Ø600 | 130
3,300 | 7100069480 | 2650 x 1400 x 1600 – 1900 | Ø600 | 145

Notes
Dimensions A x B x C indicate length, width and height (variable height 1600–1900 mm depending on configuration). The inspection opening diameter is Ø600 mm for all models.
