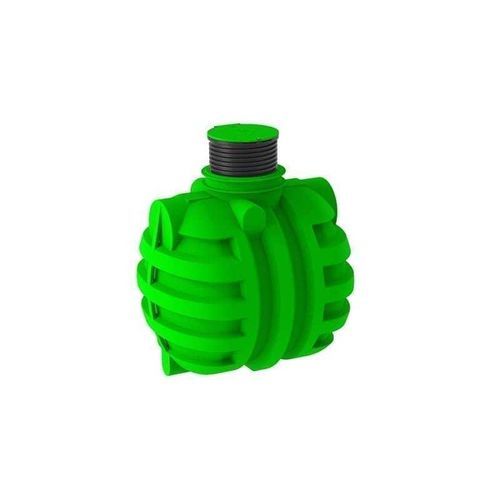

Rainwater retention tank ROTERRA 1800

water storagein-groundunderground

Description
Roterra rainwater collectors are manufactured from polyethylene (PE), an environmentally friendly material, and are designed for buried installation. Interior access is provided by flat hinged covers with a 600 mm diameter, fitted on a telescopic cantilever that allows easy adjustment of the tank embedding to site conditions. A gasket is fixed to the cover to ensure watertightness.

Inlet connections are made according to project specifications (1/2", 3/4", 1", 2") for water distribution or to PVC pipes DN 32 to DN 400 for gravity overflows.

Roterra 1800 rainwater recovery tanks are available in capacities from 3,500 L to 6,000 L.

Table - Main dimensions
Volume [L] | Code | Dimensions A x B x C [mm] | Inspection opening [mm] | Total weight [kg] | Datasheet (file name)
3500 | 7100067120 | 2080 x 1800 x 2050 – 2350 | Ø600 | 165 | RoTerra-3500_Fiche-technique-FR.pdf
5000 | 7100067130 | 2450 x 1800 x 2050 – 2350 | Ø600 | 195 | RoTerra-5000_Fiche-technique-FR.pdf
6000 | 7100067140 | 2820 x 1800 x 2050 – 2350 | Ø600 | 235 | RoTerra-6000_Technicni-list-FR.pdf

Characteristics / technical specifications

• Material: polyethylene (PE)
• Installation: designed for buried installation
• Cover: flat hinged Ø 600 mm with sealing gasket
• Cover mounting: telescopic cantilever for embedding adjustment
• Inlet fittings: according to project (1/2", 3/4", 1", 2")
• Overflow: connection to PVC pipes DN 32 to DN 400 (gravity)
• Volume range: 3,500 L, 5,000 L, 6,000 L (Roterra 1800)
• Indicative weight: 165 kg (3,500 L), 195 kg (5,000 L), 235 kg (6,000 L)
• Technical documents available: drawings, DWG, datasheets and renders (PDF/DWG files provided by the manufacturer)
