Water storage tank RODRINK

drinking water storageundergroundclosed

Description
RoDrink potable water tanks are manufactured in environmentally compatible polyethylene (PE Dowlex 2432) and are intended for buried storage of drinking water. They are designed for project-based B2B installations requiring certified potable water containment.

Access and sealing
Access is provided by flat manhole covers Ø600 mm installed on integrated risers adaptable to site conditions. Covers include a rubber gasket to ensure watertightness.

Connections
Inlet and outlet connections are executed according to the project (1/2", 3/4", 1", 2" for potable water distribution). Connection ranges DN 50 – DN 400 are available for fittings.

Certification
RoDrink tanks hold the ACS sanitary conformity certificate issued by Laboratoire Français CARSO.

Dimensions (excerpt)
Volume [L] | Code | Dimensions A x B x C [mm] | Inspection opening [mm] | Total weight [kg]
2.200 | 7100067161 | 1840 x 1400 x 1600 | Ø600 | 100
3.000 | 7100067171 | 2400 x 1400 x 1600 | Ø600 | 130
5.000 | 7100090411 | 2450 x 1800 x 2050 | Ø600 | 195
6.000 | 7100090421 | 2820 x 1800 x 2050 | Ø600 | 235

Associated documents (examples)
ACS certificate, technical datasheets and drawings available in PDF for each model (RoDrink 2.200 / 3.000 / 5.000 / 6.000).

Product views / images

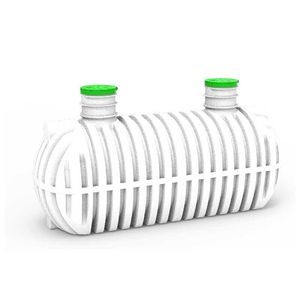

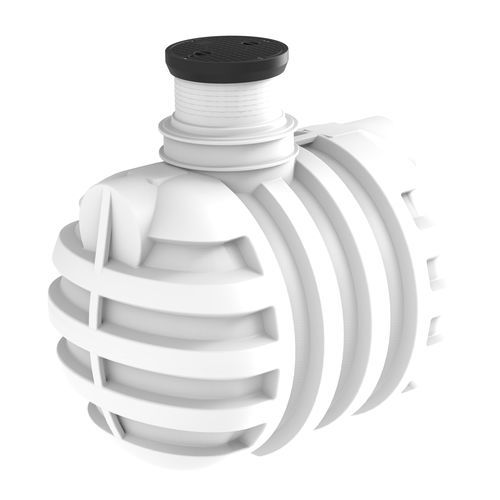

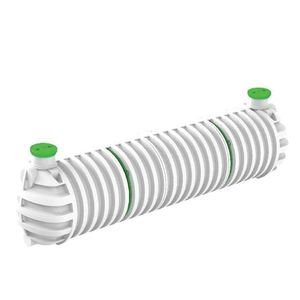

Images and visuals (general views, drawings and hotspots showing the flat cover, reinforcing ribs, integrated risers and connection points).

Characteristics / technical specifications

• Material: Polyethylene (PE Dowlex 2432) suitable for potable water.
• Access: Flat cover Ø600 mm on integrated riser, rubber gasket for sealing.
• Connections: According to project (1/2", 3/4", 1", 2"), connection ranges DN 50 – DN 400.
• Sanitary certification: ACS certificate (Laboratoire CARSO).
• Maximum backfill above the tank: 700 mm.
• Mechanical resistance and stability: normative references P 0865 / 12 – 680 – 2 (mechanical) and P 0865 / 12 – 680 – 1 (sealing).
• Traffic load: AB plate above the tank and cast-iron cover required when subject to vehicle circulation or load.
• High groundwater: AB ground plate and anchoring of the tank required.
• Reinforcement: Integrated stiffening ribs.
