Drinking water storage tank RODRINK 2100

water storageundergroundclosed

Overview
RoDrink 2100 — polyethylene (PE) underground drinking water reservoir for medium-scale supply projects. Designed to capture and safely store potable water (e.g., spring water) with variants from 8,000 to 16,000 L. Suitable for long-term storage and integration into sustainable water-supply systems.

Certifications / Approvals
Certified for drinking water storage. Certificate reference (as shown on site): REG2-0004-04-ZGPro1-2731 (ZAG).

Key Features

• Manufactured from food-grade polyethylene (PE) — Dowlex 2432.
• Underground, corrosion-free waterproof construction.
• Walkable, watertight PE cover for surface safety.
• Telescopic dome shaft to adjust access opening to ground level.
• Engineered statics and reinforced profile for robust load-bearing performance.
• Traffic-loadable design — rated up to 40 tonnes.

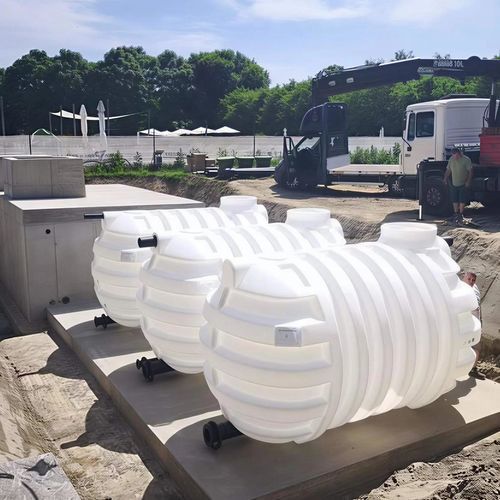

• Option to anchor to concrete slab for high groundwater installations.
• Integrated internal partitions available.
• Multiple dome opening sizes (e.g., DN600, DN800).
• Flat surfaces for easy coupling of multiple tanks; supports pipe diameters up to DN 315.
• Multiple inlet/outlet options and multi-directional connections.
• Built-in lifting eyes and forklift-friendly base for handling.
• Designed for long service life and fully waterproof.

Economic & Installation Advantages

• Plug & Play — tailored project solutions; series connection of multiple tanks possible.
• Optimized geometry reduces transport costs and required excavation/backfill volumes.
• Quick installation with maintenance-friendly access via configurable manholes.

Safety & Structural Notes

• Reinforced design counters buoyancy and deformation risks in high groundwater.
• Tank profile reduces lateral earth pressure for improved structural stability.

Installation & Handling

• Designed for underground installation; telescopic riser adapts to terrain height.
• Marked lifting points and forklift-friendly base simplify transport and on-site handling.
• Walkable covers and trafficable domes enable safe surface use after installation.

Technical data (summary)
Volume [L] | Code | Dimensions (L x W x H in mm) | Weight (kg) | Techn. drawing (PDF filename) | DWG file (filename) | Inquiry code
8.000 | 7100062541 | 2490x2100x2600-3000 | 275 | ROTERRA-2100-V8000L.pdf | ROTERRA-2100-V8000L.zip | (product 8000L)
10.000 | 7100065771 | 3150x2100x2600-3000 | 345 | ROTERRA-2100-V10000L.pdf | ROTERRA-2100-V10000L.zip | (product 10000L)
13.000 | 7100067841 | 4140x2100x2600-3000 | 450 | ROTERRA-2100-V13000L.pdf | ROTERRA-2100-V13000L.zip | (product 13000L)
16.000 | 7100067841 | 4800x2100x2600-3000 | 520 | ROTERRA-2100-V16000L.pdf | ROTERRA-2100-V16000L.zip | (product 16000L)

Notes
Inlets are positioned on the tank neck to enable 100% volume utilization. Extensions available with several riser and cover types to match installation depth. Multiple tanks can be coupled longitudinally and laterally to expand storage.

Technical specifications

• Material: Food-grade polyethylene (PE), Dowlex 2432.
• Volume range: 8,000–16,000 L (variants: 8,000 L; 10,000 L; 13,000 L; 16,000 L).
• Typical dimensions (examples): 2490x2100x2600-3000 mm (8,000 L); 3150x2100x2600-3000 mm (10,000 L); 4140x2100x2600-3000 mm (13,000 L); 4800x2100x2600-3000 mm (16,000 L).
• Approx. weights: 275 kg (8,000 L); 345 kg (10,000 L); 450 kg (13,000 L); 520 kg (16,000 L).
• Traffic rating: up to 40 t.
• Connection diameters: up to DN 315 (typical sizes DN 110–DN 300).
• Dome openings: DN600, DN800 options.
• Groundwater: anchoring to concrete slab possible.
• Accessories: integrated partitions, multiple riser/cover types, coupling options, technical drawings and DWG files per variant.
