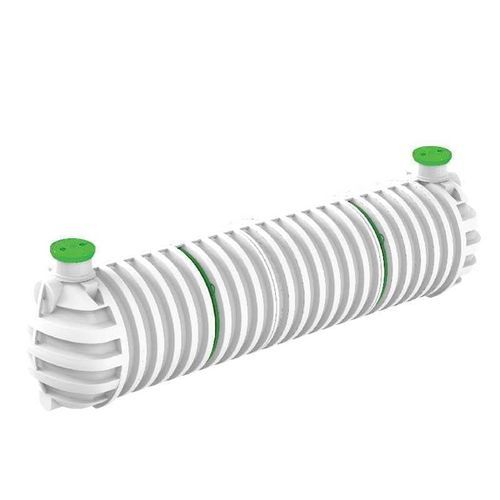

Water storage tank RODRINK

drinking water storagein-groundunderground

Description

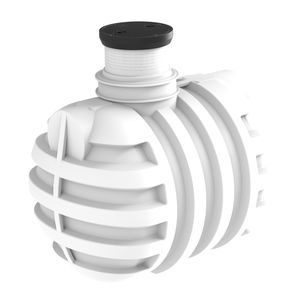

The RoDrink potable water collectors are manufactured in polyethylene (PE Dowlex 2432) and are suitable for potable water storage. They are designed to be buried in the ground. Internal access is provided by flat lids with a diameter of 600 mm mounted on integrated risers adaptable to the terrain. The lid is equipped with a rubber gasket ensuring watertightness.
Inlet and outlet connections are executed according to the project (common options: 1/2", 3/4", 1", 2" for potable water distribution).
Our RoDrink tanks have obtained the ACS sanitary conformity certificate issued by the French laboratory CARSO.

Dimensions (extracts)
Volume [L] | Code | Dimensions A x B x C [mm] | Inspection opening [mm] | Total weight [kg]
22.000 | 7100062571 | 6280 x 2300 x 2850 | 2 x Ø600 | 820
25.000 | 7100862571 | 7370 x 2300 x 2850 | 2 x Ø600 | 1040
30.000 | 7100062351 | 8450 x 2300 x 2850 | 2 x Ø600 | 1080

Available documents (plans / datasheets / declarations)
Plans, technical datasheets and declarations of performance are provided for each capacity (22.000 L, 25.000 L, 30.000 L).

Features / technical specifications

• Potable water certificate (example): REG2-0004-04-ZGPro1-2731
• Material: polyethylene PE (Dowlex 2432) suitable for potable water storage
• Mechanical resistance and stability: P 0865 / 12 – 680 – 2
• Watertightness: P 0865 / 12 – 680 – 1
• Maximum fill above the tank: 700 mm
• Traffic load: AB load-distribution slab required above the tank and the cover
• High groundwater: AB base slab and anchoring of the tank required
• Connections: DN 50 to DN 400 (depending on project)
• Inspection openings: 2 x Ø600 mm (depending on model)
• Indicative weight: 22.000 L ≈ 820 kg; 25.000 L ≈ 1040 kg; 30.000 L ≈ 1080 kg
