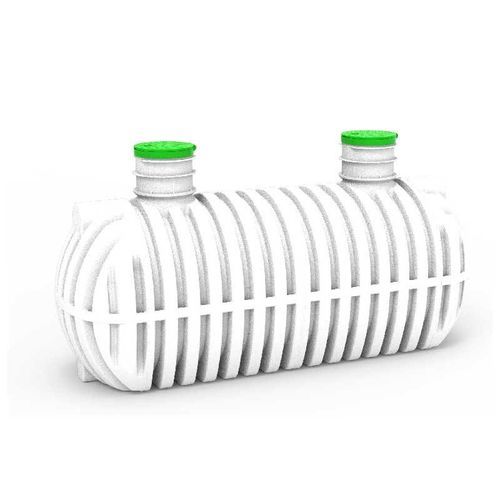

Water storage tank RODRINK 2450

drinking water storageundergroundpolyethylene

Overview
RoDrink potable water collectors are manufactured in environmentally compatible polyethylene (PE Dowlex 2432) and are suitable for potable water storage. They are designed for buried installation.

Access and closure
Internal access is provided by flat covers with a 600 mm diameter, fitted on integrated risers with the possibility to adapt to site levels. The cover includes a rubber gasket to ensure watertightness.

Connections
Inlet and outlet connections are executed according to project specifications and can be sized to requirements (examples of supply/distribution: 1/2", 3/4", 1", 2").

Certification
Our RoDrink tanks have obtained the ACS sanitary certification issued by the French laboratory CARSO.

Dimensions table
Volume [L] | Code | Dimensions A x B x C [mm] | Inspection opening [mm] | Total weight [kg]
20.000 | 7100062670 | 4690 x 2425 x 2700 – 3000 | Ø600 | 660
25.000 | 7110025000 | 5720 x 2425 x 2700 – 3000 | Ø600 | 850
30.000 | 7110030000 | 6550 x 2425 x 2700 – 3000 | 2 x Ø800 | 990
35.000 | 7110035000 | 7530 x 2425 x 2700 – 3000 | 2 x Ø800 | 1140
40.000 | 710040000 | 8510 x 2425 x 2700 – 3000 | 2 x Ø800 | 1290
45.000 | 7110045000 | 9870 x 2425 x 2700 – 3000 | 3 x Ø800 | 1560
50.000 | 7110050000 | 10850 x 2425 x 2700 – 3000 | 3 x Ø800 | 1700
55.000 | 7110055000 | 11500 x 2425 x 2700 – 3000 | 3 x Ø800 | 1770
60.000 | 7110060000 | 12480 x 2425 x 2700 – 3000 | 3 x Ø800 | 1920
65.000 | 7110065000 | 13460 x 2425 x 2700 – 3000 | 3 x Ø800 | 2070

Additional information

• Material: polyethylene (PE Dowlex 2432) suitable for potable water storage.
• Design: tanks designed for buried installation.
• Accessories and options: risers to adapt to site level, various connection diameters according to project.
• Availability: volumes available from 20.000 L to 65.000 L (see table for codes and dimensions).

Technical characteristics / specifications

• Material: PE Dowlex 2432 (polyethylene compliant for potable water).
• Use: potable water storage, buried installation.
• Cover: flat Ø600 mm with rubber gasket for watertightness.
• Connections: executed on demand per project (e.g. 1/2", 3/4", 1", 2").
• Capacity ranges: 20.000 L, 25.000 L, 30.000 L, 35.000 L, 40.000 L, 45.000 L, 50.000 L, 55.000 L, 60.000 L, 65.000 L.
• Corresponding product codes: see table (e.g. 20.000 L = 7100062670, 65.000 L = 7110065000).
• Sanitary certification: ACS sanitary certificate (conformity for potable water).
