Ceiling-mounted air conditioner AC100RN4PKG/EU

split systemcommercialreversible

Overview

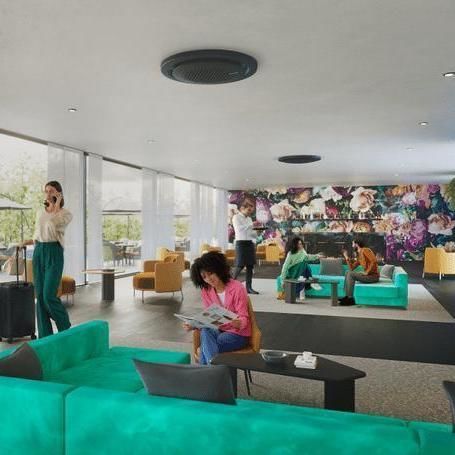

The 360 Cassette is a ceiling cassette air conditioning indoor unit with a circular panel designed for compact ceiling spaces (circular panel clearance from 225 mm). The bladeless 360° circular outlet distributes air uniformly to reduce temperature differentials and minimise cold drafts compared with conventional 4‑way cassette units.

Key features

• 360° circular airflow: bladeless outlet provides uniform distribution to reach corners and reduce temperature differences.
• PM1.0 filter (optional): captures ultrafine particles down to 0.3 μm; electrostatic precipitator inactivates certain captured bacteria (model/test dependent).
• Circular LED display: shows airflow direction, filter and operating status; controlled by wireless jog‑shuttle remote.
• Airflow control: internal booster fans redirect airflow (Coanda effect) without external blades; optional Motion Detector Sensor (MDS) available.
• WindFree operation: provides cooling without a perceptible cold draft.
• Smart control: compatible with Wi‑Fi kit and SmartThings app for remote on/off, mode selection, scheduling and energy monitoring.
• SolarCell Remote Controller (optional): solar‑charged remote with USB‑C fast charging and OLED display (no disposable batteries required).
• Air Purification panel: available as an optional accessory.

Product details

• Product name: 360 Cassette
• Indoor model (example shown): AC100RN4PKG/EU
• Compatible outdoor units: AC071RXADKG/EU, AC100RXADKG/EU, AC120RXADKG/EU, AC140RXADKG/EU
• Available cooling capacities (nominal): 7.1 kW, 10.0 kW, 12.0 kW, 13.4 kW (dependent on configuration)
• Available power supply: single‑phase for selected capacities

Specifications (summary)
Energy label (cooling, SEER): SEER 6.8 (A++)
Energy label (heating, SCOP): SCOP 4.3 (A+)
Refrigerant: R32 (factory charge example 2.70 kg)
Cooling capacity (nominal): 7.1 / 10.0 / 12.0 / 13.4 kW (selection dependent)
Heating capacity (at +7 °C): 8 / 11.2 / 13.2 / 15.5 kW (selection dependent)
Indoor unit dimensions (W x H x D): 947 x 281 x 947 mm (variants may show 947 x 365 x 947 mm)
Indoor net weight: approx. 20.2–25.5 kg depending on capacity (example 23.5 kg shown for certain variants)
Panel model: PC4NUDMAN — panel dimensions 1000 x 66 x 1000 mm, panel net weight 3.6 kg
Drain: VP25 (OD32 / ID25) mm; DC drain pump included (max lift 750 mm, displacement 24)
Piping: liquid Ø 9.52 mm (3/8"), gas Ø 15.88 mm (5/8"); max piping length 50 m, max height difference 30 m
Power input (cooling/heating), current ratings, MCA/MFA and fan performance vary by capacity; outdoor unit example weight 75.0 kg, dimensions 940 x 998 x 330 mm, outdoor sound pressure ~52/54 dB(A)
Operating range: cooling -15 to 50 °C; heating -20 to 24 °C
Smart features: Wi‑Fi kit supported; SmartThings app compatible

Disclaimers

• Minimum ceiling clearance depends on panel design; square panels typically require ~30 mm more height than circular panels.
• Performance comparisons reference internal testing versus conventional 4‑way cassette units.
• Specified temperature uniformity and draft‑free ranges are test‑condition dependent and may vary by installation and model.
• Air Purification panel and SolarCell Remote Controller are optional accessories; feature availability may vary by market.
• Smart control requires Wi‑Fi Kit MIM‑H04EN, a Wi‑Fi connection and a SmartThings account; mobile OS requirements apply.

Technical characteristics

• Brand: Samsung
• Commercial name: 360 Cassette
• Example indoor model: AC100RN4PKG/EU
• Available nominal cooling capacities: 7.1, 10.0, 12.0, 13.4 kW
• Refrigerant: R32 (factory charge example 2.70 kg)
• Indoor dimensions example: 947 x 281 x 947 mm
• Panel model: PC4NUDMAN — 1000 x 66 x 1000 mm
• Drain: VP25 (OD32/ID25) mm; DC drain pump included
• Smart features: Wi‑Fi kit compatible, SmartThings app support
