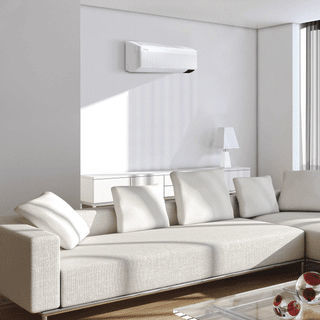

Wall-mounted air conditioner AC026BNAPKG/EU

split systemmulti-splitcommercial

Overview
Designed for commercial applications, this wall-mounted split system provides cooling and heating capacities suited to small and medium business spaces such as restaurants, retail and offices. The unit supports multiple indoor units in multi-split configurations to maintain consistent indoor temperature throughout operating hours.

Compatible with

• AC026BXAPKG/EU
• AC035BXAPKG/EU
• AC052BXAPKG/EU
• AC071BXAPKG/EU
• AC071BXAPNG/EU

Available capacities

• 2.6KW
• 3.5KW
• 5.2KW
• 7.1KW

WindFree™ Technology
WindFree™ Cooling disperses air through 23,000 micro-holes to create a low-airflow "still air" environment with reduced noise. It provides more uniform cooling across the conditioned zone and, in referenced tests, consumes up to 77% less energy than Fast Cooling mode.

Easy Installation and Servicing
The wall-mounted indoor unit features a snap-fit bottom cover with two screw points for straightforward servicing. A roller-type mounting bracket allows the unit to be installed by fixing the bracket to the wall and sliding the unit into position.

Easy Filter Plus
The Easy Filter Plus is positioned externally on the top of the indoor unit for quick removal and cleaning without opening a cover. Its dense mesh preserves heat-exchanger cleanliness and a special coating offers protection against certain airborne contaminants.

High Efficiency / Operability
High-efficiency components (Flash Injection Technology, improved heat sink) maintain heating performance at low ambient temperatures and extend operational range. Operating limits: cooling up to 52℃ and heating down to -25℃.

Smart features
Remote control and management via the SmartThings App (optional Wi-Fi kit required). With the Wi‑Fi kit, up to 16 indoor units can be connected and managed remotely for on/off, mode selection, scheduling and grouping.

SolarCell Remote Controller (Optional)
An optional SolarCell remote controller integrates a solar panel for recharging (no disposable batteries required), supports USB-C fast charging, includes an OLED display and ergonomic design.

Technical specifications

• Type: EU-2.6kW-RAC-1
• Model Name (Indoor Unit): AC026BNAPKG/EU
• Model Name (Outdoor Unit): AC026BXAPKG/EU
• System Mode: Heat Pump
• Capacity - Cooling [kW]: 0.98 / 2.60 / 4.20 kW
• Capacity - Heating [kW]: 0.91 / 3.30 / 4.50 kW
• Power Input - Cooling [kW]: 0.21 / 0.65 / 1.41 kW
• Power Input - Heating [kW]: 0.19 / 0.87 / 2.45 kW
• Current Input - Cooling [A]: 1.4 / 3.2 / 6.2 A
• Current Input - Heating [A]: 1.3 / 4.1 / 10.8 A
• MCA: 12.0 A
• MFA: 15.0 A
• Energy Efficiency (Cooling): SEER 7.2 (A++)
• Energy Efficiency (Heating): SCOP 4.3 (A+)
• Liquid Pipe Ø: 6.35 mm
• Gas Pipe Ø: 9.52 mm
• Installation Max. Length: 30 m
• Installation Max. Height: 20 m
• Transmission Cable: 0.75 ㎟
• Refrigerant Type: R32 (Contains fluorinated greenhouse gases, GWP = 675)
• Factory Charging: 1.20 kg
• Factory Charging (tCO2e): 0.81 tCO2e
• Control Method: EEV
• Power Supply (Indoor Unit) [Φ, #, V, Hz]: 1, 2, 220-240, 50
• Power Supply (Outdoor Unit) [Φ, #, V, Hz]: 1, 2, 220-240, 50
• Fan (Indoor Unit) Type: Cross Flow
• Air Flow Rate (Indoor) [m3/min]: (C)10.6/8.5/6.9 (H)11.7/9.6/8.0 CMM
• Motor (Output): 27 W
• Number of Unit: 1 EA
• Drain Pipe: ID18mm Hose
• Sound Pressure Level (Indoor) (High / Mid / Low): 37 / 31 / 25 / 21 dB(A)
• Sound Power Level (Indoor) (Cooling): 56 dB(A)
• Sound Pressure (Outdoor) (Cooling / Heating): 45 / 45 dB(A)
• Sound Power Level (Outdoor) (Cooling): 59 dB(A)
• External Dimension (Indoor) - Net Weight: 10.6 kg
• External Dimension (Indoor) - Net Dimensions (WxHxD): 889 x 215 x 299 mm
• External Dimension (Outdoor) - Net Weight: 43.0 kg
• External Dimension (Outdoor) - Net Dimensions (WxHxD): 880 x 638 x 310 mm
• Operating Temp. Range - Cooling: -20 ~ 52 ℃
• Operating Temp. Range - Heating: -25 ~ 24 ℃
• WiFi Kit: Yes (required for SmartThings remote control)
• SmartThings App Support: Yes
