Floor air conditioner AC026RNJDKG/EU

splitresidentialcommercial

Overview

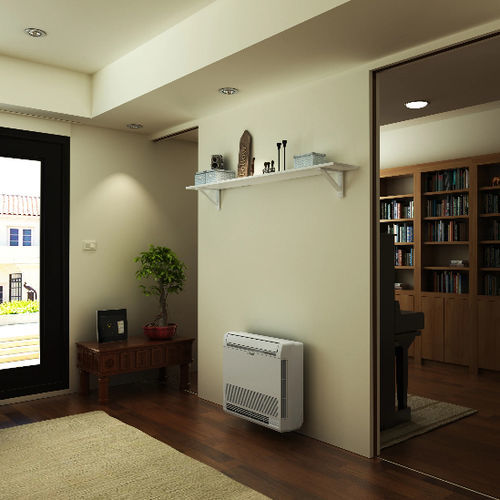

The Console is a slim floor console air conditioner (199 mm depth) designed for compact commercial and residential spaces. It maintains target temperatures with a panel engineered to reduce dust accumulation and a black touchscreen display for convenient local control.

Key features

• Optimized airflow management: 2‑way air outlets provide fast, even distribution; warm air is expelled from the bottom outlet to improve room heating.
• Permanently washable filter: durable, reusable filter for reduced maintenance and fewer replacements.
• Four operating modes: High, Medium, Low and Silent. Silent mode reduces audible airflow to as low as 23 dB(A)¹.
• Smart control: supports WiFi Kit and is compatible with the SmartThings App for remote control, scheduling and energy monitoring.

Additional information
The Console is available in multiple capacities with single‑phase power options and uses R32 refrigerant (GWP = 675). Performance figures are based on internal tests and may vary. A Wi‑Fi connection with Wifi Kit MIM‑H04EN and a Samsung SmartThings account are required; iOS 10.0+ or Android 5.0+ is needed.

Technical specifications

• Type: 2.6 kW - 1Φ - Console
• Model Name: Indoor Unit AC026RNJDKG/EU; Outdoor Unit AC026RXADKG/EU
• System / Mode: Heat Pump
• Available capacity options: 2.6 kW, 3.5 kW, 5.2 kW
• Available power: 1 Phase
• Capacity (Cooling): 0.98 / 2.60 / 3.40 kW
• Capacity (Heating): 0.95 / 3.50 / 4.20 kW
• Power input (Cooling): 0.23 / 0.72 / 1.20 kW
• Power input (Heating): 0.21 / 1.06 / 1.45 kW
• Current input (Cooling): 1.6 / 3.6 / 5.5 A
• Current input (Heating): 1.3 / 5.0 / 7.0 A
• Power / MCA: MCA 11.0 A; MFA 12.5 A
• Energy efficiency: SEER 6.4 (A++); SCOP 4.2 (A+)
• Piping connections: Liquid pipe Ø 6.35 mm (3/8"); Gas pipe Ø 9.52 mm (3/8"); Max. installation length 20 m; Max. installation height 15 m
• Field wiring: Transmission cable 0.75 mm²
• Refrigerant: R32 (contains fluorinated greenhouse gases, GWP = 675); Factory charging 0.90 kg (0.61 tCO2e); Control method: EEV
• Power supply (Indoor Unit): 1, 2, 220~240 V, 50 Hz
• Power supply (Outdoor Unit): 1, 2, 220~240 V, 50 Hz
• Fan (Indoor Unit): Turbo; Air flow rate (Cool) High/Mid/Low: 7.5 / 6.8 / 6.0 m3/min; (Heat) 8.5 / 7.2 / 6.2 m3/min; Motor output 35 W; Number of units: 1 EA
• Drain: Drain pipe ID 18 mm hose
• Sound (Indoor Unit): Sound pressure level High / Mid / Low / Silent: 36 / 31 / 26 / 23 dB(A); Sound power level (Cooling): 53 dB(A)
• Sound (Outdoor Unit): Sound pressure (Cooling / Heating): 46 / 47 dB(A); Sound power level (Cooling): 59 dB(A)
• External dimension (Indoor Unit) / Net weight: 16.0 kg; Net dimensions (W x H x D): 720 x 199 x 620 mm
• External dimension (Outdoor Unit) / Net weight: 32.5 kg; Net dimensions (W x H x D): 790 x 548 x 285 mm
• Operating temperature range: Cooling -15 ~ 46 °C; Heating -20 ~ 24 °C
• Smart features: WiFi Kit supported; SmartThings App support (remote control, scheduling, energy monitoring)
