Ceiling air conditioner AC052BN6PKG/EU

ceiling-mountedsplitcommercial

Overview

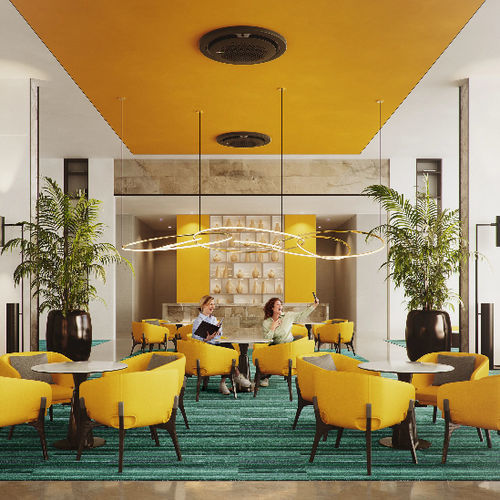

The 360 Cassette High Efficiency features an innovative circular design that blends with many interior styles. Its minimalistic, elegant circular panel can be installed in a ceiling space from just 225 mm, offering greater flexibility in location and a distinctive look. The bladeless circular outlet distributes air evenly to reach every corner of a room while reducing cold drafts.

Compatibility

• AC052BXAPKG/EU
• AC071BXAPKG/EU
• AC071BXAPNG/EU
• AC100BXAPKG/EU
• AC100BXAPNG/EU
• AC120BXAPNG/EU
• AC140BXAPNG/EU

Key Features

• Circular airflow: bladeless circular outlet blows air in every direction for more even distribution and up to 25% more airflow compared to a conventional 4‑Way Cassette.
• PM1.0 Filter (optional): captures ultrafine dust down to 0.3 μm and includes an electrostatic precipitator that can inactivate certain captured bacteria.
• Circular LED display: intuitive display showing airflow direction, filter status and basic operating information; allows airflow adjustment via wireless jog-shuttle remote.
• Airflow Control: three booster fans inside the cassette allow blade-free adjustment of airflow direction using the Coanda effect for a rain-like distribution.
• High Efficiency range: Flash Injection Technology and improved heat sink for maintained heating performance in cold weather; cooling up to 52 °C and heating down to -25 °C.
• Smart functions: WiFi kit available; compatible with SmartThings app for remote control, scheduling and power monitoring.
• SolarCell Remote Controller (optional): solar charging, USB-C fast charging, large OLED, improved usability; no disposable batteries required.

Available Capacities & Power

• Available capacities: 5.2 kW, 7.1 kW, 10.0 kW, 12.0 kW, 14.0 kW
• Available power: 1 Phase (selected models)

Notes & Disclaimers (selection)
Minimum ceiling installation height may vary by panel design; square panels require ~30 mm more height than circular panels.
Performance comparisons vs. conventional 4‑Way Cassette are based on Samsung internal testing. Air Purification panel and PM1.0 filter are optional accessories.

Technical specifications

• Type: EU-5.2kW-360-1 (Heat pump system)
• Indoor unit model: AC052BN6PKG/EU
• Outdoor unit model (example): AC052BXAPKG/EU
• Capacity (Cooling nominal examples): 1.20 / 5.00 / 7.50 kW
• Capacity (Heating examples): 1.00 / 6.00 / 9.30 kW
• Cooling (nominal ranges shown in product table): 7.1 / 10 / 12 / 13.4 kW (varies by model)
• Heating at +7 °C (examples): 8 / 11.2 / 13.2 / 15.5 kW (varies by model)
• Power input (Cooling 1)): 0.24 / 1.22 / 2.45 kW
• Power input (Heating 2)): 0.20 / 1.62 / 3.05 kW
• Current input (Cooling): 1.6 / 5.7 / 10.8 A
• Current input (Heating): 1.4 / 7.4 / 13.5 A
• Power (electrical protection): MCA 17.5 A, MFA 20.0 A
• Energy efficiency: SEER 8.3 (A++ cooling), SCOP 4.6 (A++ heating)
• Refrigerant type: R32 (GWP = 675)
• Factory refrigerant charge: 1.70 kg (≈ 1.15 tCO2e)
• Control method: EEV (electronic expansion valve)
• Piping connections: Liquid pipe ø 6.35 mm; Gas pipe ø 12.7 mm; Max installation length 50 m; Max height difference 30 m
• Field wiring: Transmission cable 0.75 mm²
• Fan type: Turbo; Air flow rate (High / Mid / Low): (C/H) 15.5 / 14.6 / 13.6 CMM
• Fan motor output: 65 W; Number of units: 1 EA
• Drain pipe: VP25 (OD 32 / ID 25 mm)
• Indoor sound pressure level (High / Mid / Low): 33 / 31 / 29 dB(A)
• Indoor sound power level (Cooling): 49 dB(A)
• Indoor external dimensions (W x H x D): 947 x 281 x 947 mm
• Indoor net weight: 20.2 kg
• Outdoor net weight (example): 50.0 kg; Outdoor dimensions (W x H x D): 880 x 798 x 310 mm
• Panel model: PC4NUDMAN; Panel net weight 3.6 kg; Panel net dimensions 1000 x 66 x 1000 mm; Panel shipping weight 6.3 kg; Panel shipping dims 1093 x 85 x 1083 mm
• Additional accessories: Drain pump DC (included); Drain pump max lifting height / displacement: 750 / 24
• Operating temperature range: Cooling -20 ~ 52 °C; Heating -25 ~ 24 °C
• Smart features: WiFi kit available; SmartThings App support (remote control, scheduling, energy monitoring)
