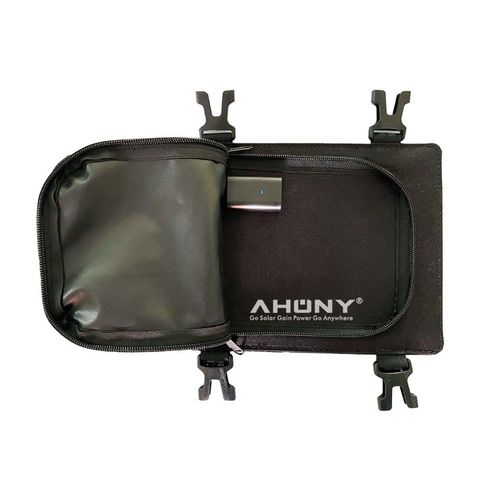

Monocrystalline PV solar panel eMobi F7w

flexible

Product Name - Solar panel for backpack Maximum Power[Wp] - 7 Solar Cell - A grade mono perc cell Cell Array[Pcs] - 1*12 Cell Efficiency - 23.00% Size[mm] - 185*250*5 Max Power Voltage Vmp[V] - 6.96 Max Power Current Imp[A] - 1.01 Open Circuit Voltage Voc[V] - 8.21 Short Circuit Current Isc[A] - 1.09 Net.Weight[kg] - 0.5 Power tolerance[ - ±5% NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/K] - -0.4 Temperature Coefficient Voc[[%/K] - -2mV Temperature Coefficient Isc[[%/K] - 0.037 Maximum System Voltage[V] - 100 V Maximum Reverse Current[V] - 10A Certification - CE ROHS Surface/Backsheet - PET/black backsheet,cover copper ribbon Maximum bend radius(θ) - 10° Cables and Connectors - USB male+0.3m cable+USB female USB - 1pcs,panel max output current 5V 1.4A(USB can load 5v 2.4A),automatically restart Cable pocket - yes Sew buckles - Yes,sew 4pcs buckles Standard Test Conditions - STC: 1000W/m², AM 1.5 and cell temp 25°C
