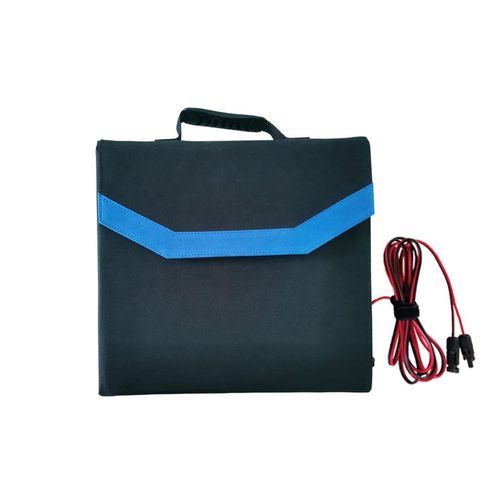

Monocrystalline PV solar panel eMobi F10x20w

flexible

Model No. - eMobi F10x20w(eMobi F200w or eMobi F10*20w) Product Name - 200w solar blanket 10x20w portable kit to charge portable generator for camper trailer rv motorhome military remote medical care Maximum Power[Wp] - 200 Solar Cell - Mono PERC A Grade Solar Cell Cell Efficiency - 22.50% Folded Size[mm] - 400*360*80 Open Size[mm] - 1715*780*4 Max Power Voltage Vmp[V] - 20.16 Max Power Current Imp[A] - 9.92 Open Circuit Voltage Voc[V] - 23.79 Short Circuit Current Isc[A] - 10.71 Net.Weight[kg] - 7/8.15 NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/ - -0.4 Temperature Coefficient Voc[[mV/ - -2mV Temperature Coefficient Isc[mA/ - 0.037 Maximum System Voltage[V] - 100 V Certification - CE ROHS Suface/backsheet - PET+FR4 fibreglass Charge controller - PWM 10A 12/24V,2 USB,LCD display Cables - 5m 14AWG cable Connector - MC4+battery clips Supporting Leg - No Eyelets - Yes
