Monocrystalline PV solar panel eMobi F8*20w

monocrystalline PV solar panel
monocrystalline PV solar panel
monocrystalline PV solar panel
monocrystalline PV solar panel
monocrystalline PV solar panel
monocrystalline PV solar panel
Add to favorites
Compare this product


Characteristics

Technology
monocrystalline
Peak power (Wp)

160 W

Description

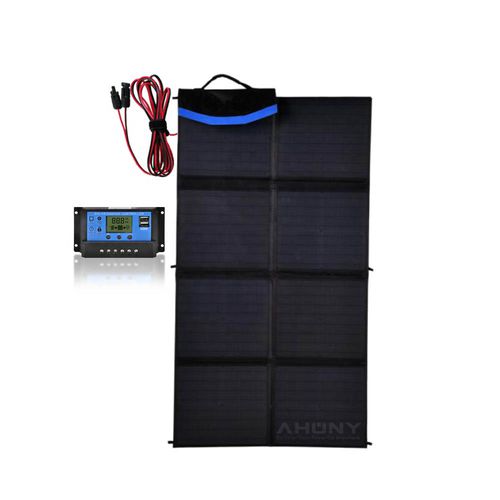

High quality 160w foldable solar charging bag blanket portable a grade mono cell for charging solar generator lithium battery Product Name - 12V folding solar kits Maximum Power[Wp] - 160 Solar Cell - Mono PERC A Grade Solar Cell Cell Efficiency - 21.30% Folded Size[mm] - 400*360*80 Open Size[mm] - 1440*800*4 Max Power Voltage Vmp[V] - 20.38 Max Power Current Imp[A] - 7.85 Open Circuit Voltage Voc[V] - 24.05 Short Circuit Current Isc[A] - 8.48 Net.Weight[kg] - 3.5 NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/ - -0.4 Temperature Coefficient Voc[[mV/ - -2mV Temperature Coefficient Isc[mA/ - 0.037 Maximum System Voltage[V] - 100 V Certification - CE ROHS Suface/backsheet - PET+FR4 fibreglass Charge controller - PWM 10A 12/24V,2 USB,LCD display Cables - 5m 14AWG cable Connector - MC 4+battery clips Supporting Leg - No Eyelets - Yes
