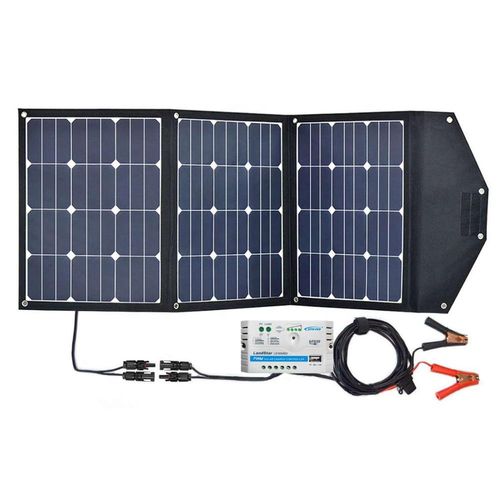

MONO PERC A Grade solar cell
Product Name -
Maximum Power[Wp] - 120
Solar Cell -
Cell Efficiency - 22.50%
Folded Size[mm] - 500*440*50
Open Size[mm] - 2025*500*4
Max Power Voltage Vmp[V] - 20.16
Max Power Current Imp[A] - 5.95
Open Circuit Voltage Voc[V] - 23.79
Short Circuit Current Isc[A] - 6.43
Net.Weight[kg] - 2.7
NOCT[ - 45±2
Operating Temperature[ - -40/+85
Temperature Coefficient Pmax[%/ - -0.4
Temperature Coefficient Voc[[mV/ - -2mV
Temperature Coefficient Isc[mA/ - 0.037
Maximum System Voltage[V] - 100 V
Certification - CE ROHS
Suface/backsheet - Waterproof textile,PET+FR4 fibreglass
Charge controller -
Cables - 5m 14AWG cable
Connector - SAE or MC4+battery clips
Supporting Leg - Yes
Eyelets - Yes
Standard Test Conditions - STC: 1000W/m², AM 1.5 and cell temp 25°C
Package - 1pcs/bubble plastic bag,then in 1 carton box
