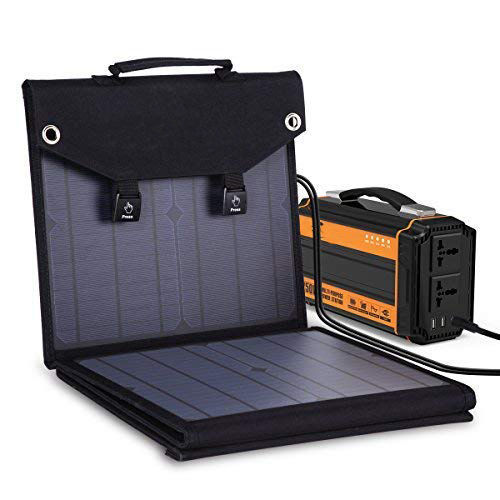

Monocrystalline PV solar panel eMobi F250w,10*25w
flexible

monocrystalline PV solar panel
monocrystalline PV solar panel
monocrystalline PV solar panel
monocrystalline PV solar panel
monocrystalline PV solar panel
monocrystalline PV solar panel
monocrystalline PV solar panel
Add to favorites
Compare this product


Characteristics

Technology
monocrystalline
Options
flexible
Peak power (Wp)

250 W

Description

Product Name - folding solar charger 100w 4 fold 25w each solar panel the most popular one to charge portable power generator Maximum Power[Wp] - 250 Solar Cell - Mono A grade solar cell PERC Cell Efficiency - 21.30% Folded Size[mm] - 410*370*70 Open Size[mm] - 2160*900*4 Max Power Voltage Vmp[V] - 20.16 Max Power Current Imp[A] - 12.40 Open Circuit Voltage Voc[V] - 23.79 Short Circuit Current Isc[A] - 13.39 Net.Weight[kg] - 7.5 NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/ - -0.4 Temperature Coefficient Voc[[%/ - -2mV Temperature Coefficient Isc[[%/ - 3.7 Maximum System Voltage[V] - 100 V Certification - CE ROHS Suface/backsheet - PET+fibreglass back
