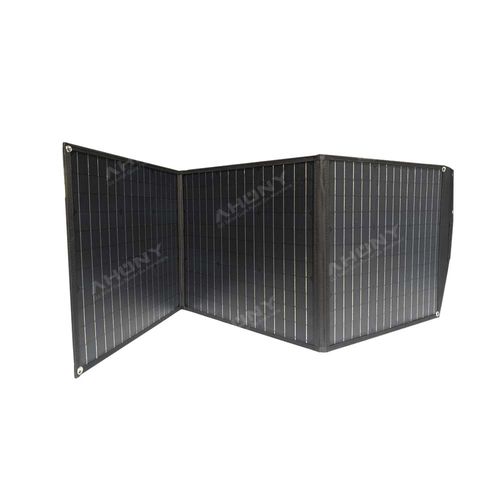

Monocrystalline PV solar panel eMobi F3*50w

monocrystalline PV solar panel
monocrystalline PV solar panel
monocrystalline PV solar panel
monocrystalline PV solar panel
monocrystalline PV solar panel
monocrystalline PV solar panel
monocrystalline PV solar panel
Add to favorites
Compare this product


Characteristics

Technology
monocrystalline
Peak power (Wp)

150 W

Description

Product Name - Folding solar kit Maximum Power[Wp] - 150 Solar Cell - PERC A Grade MONO cell Cell Efficiency - 22.50% Folded Size[mm] - 600*500*60 Max Power Voltage Vmp[V] - 20.88 Max Power Current Imp[A] - 7.18 Open Circuit Voltage Voc[V] - 24.64 Short Circuit Current Isc[A] - 7.76 Net.Weight[kg] - 4.6 NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/ - -0.4 Temperature Coefficient Voc[[mV/ - -2mV Temperature Coefficient Isc[mA/ - 0.037 Maximum System Voltage[V] - 100 V Certification - CE ROHS Suface/backsheet - PET+ PET Cables - 3.5m 14AWG cable Connector - MC4 Supporting Leg - Yes Eyelets - Yes Standard Test Conditions - STC: 1000W/m², AM 1.5 and cell temp 25°C Package - 10pcs/bubble plastic bag,then in 1 carton box
