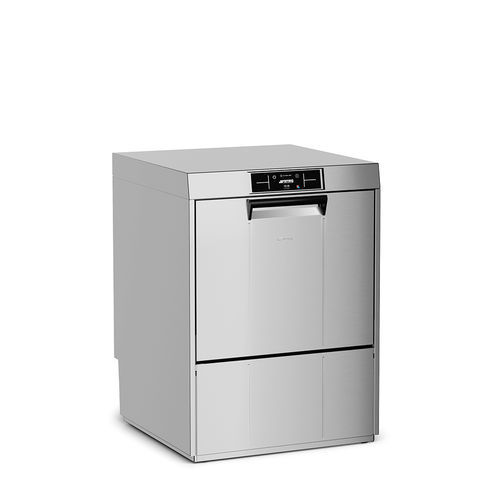

Front-loading dishwasher SPD525Efor commercial kitchenundercounterfor cutlery
Add to favorites
Compare this product
Characteristics
- Type
- front-loading
- Market
- for commercial kitchen
- Installation
- undercounter
- Options and accessories
- eco-friendly, for glasses, for cutlery
Description
Overview
Main benefits
Sustainability and efficiency
Highlights & Technology
Accessories (included)
Notes
Technical specifications
- Undercounter professional dishwasher from the Pura series (Model: SPD525E) with 500 x 500 mm basket dimensions, designed for bars, restaurants and commercial kitchens. Built in Italy.
Main benefits
- Drain Heat Recovery (DHR System) preheats incoming water using residual hot water from the wash cycle, delivering approximately 18% energy savings per cycle.
- MyPersonal Wash: 10 tested, customizable programs to adjust time, temperature, pressure and wash options for tailored results.
- Program visibility: display only the required programs for simplified management.
- AdaptWash variable-speed wash pump with 3 pressure levels to ensure optimal cleaning for different load types.
- 5-stage patented filtration system for deep cleaning and protection of pumps and components.
- Moulded tank and embossed rack guides for improved wash flow, hygiene and simplified cleaning.
- HTR+ self-adaptive rinsing system for intelligent water management and consistent rinse volume.
- Integral double-skin construction to reduce heat loss and provide sound insulation.
- Balanced door with smooth opening/closing and lockable half-open position to promote natural drying.
Sustainability and efficiency
- Rinse water volume reduced by 22% (down to 1.8 liters minimum per cycle).
- Chemical product consumption decreased by 22%.
- Energy consumption reduced by 11% per cycle (Crockery Program).
Highlights & Technology
- Variable-speed AdaptWash pump with three automatic pressure levels (level 1: delicate, level 2: moderate, level 3: heavy soils).
- Advanced touch TFT interface with intuitive icons and real-time progress monitoring.
- Advanced filtration: 5-stage stainless steel filter system with presence sensor and large filtration surface to protect washing components.
- Standard drain pump with partial water renewal to continuously renew wash water and improve hygiene.
- Peristaltic electronic detergent and rinse-aid dispensers with probes for chemical levels (optional kit available).
- Connectivity: SmegConnect PRO compatible with Wi‑Fi for remote monitoring, consumption data and maintenance alerts.
Accessories (included)
- Dish basket: 1x PB50D01
- Cutlery basket: 1x PHOOS04
- Flat basket: 1x PB50G02
- Water supply hose: yes - 2 m
- Drain hose: yes - 2 m
Notes
- Multiple optional accessories and kits available for specific needs (accessories and optional kits not detailed here).
Technical specifications
- Model / Denomination: SPD525E
- Brand: Smeg
- Type: Undercounter dishwashers
- Series: Pura
- Basket dimensions: 500 x 500 mm
- Basket dimension range: 401 - 500 mm
- Trays number: 7 x GN1/1
- Trays washing option: Yes
- Water consumption per cycle: 2.5 l (minimum 1.8 l)
- Wash temperature (min-max): 60 °C - 70 °C
- Rinse temperature (min-max): 65 °C - 87 °C
- Cold rinse temperature: 24 °C
- Min. water connection temperature: 5 °C
- Max. inlet temperature: 20 °C
- Max water hardness: 5°f - 3°dH
- Inlet pressure: 100 - 1000 kPa
- Detergent load: 1.5 l/h
- Rinse load: 0.4 l/h
- Usable load height: 400 mm
- Depth with open door: 1020 mm
- Noise (Lpa): 54.5 dBA
- Control panel: Touch screen (TFT display)
- Programs: 10 customizable programs; self-cleaning programs; program visibility feature
- Maximum baskets/hour: 60
- Maximum dishes/hour: 1080
- Maximum glasses/hour: 2160
- Boiler type: Atmospheric boiler
- Boiler capacity: 6.5 l
- Tank capacity: 11 l
- Tank heating element power: 2000 W
- Boiler heating element power: 5700 W
- Wash pump power: 700 W (variable speed AdaptWash)
- Default power connection: 8400 W
- Default electrical connection: 400 V 3N~ / 15 A / 8,4 kW / 50 Hz
- Optional electrical connections: 230 V 3~ / 24 A / 8,4 kW / 50 Hz; 230 V~ / 14 A / 3,1 kW / 50 Hz; 230 V~ / 31 A / 7,1 kW / 50 Hz
- Plug: Not present
- Construction: Integral double-skin; tank material AISI 304 stainless steel; deep drawn tank
- Lower & upper wash systems: one wash and one split rinse spray arms (stainless steel)
- Filter: 5-stage stainless steel filtration system with presence sensor
- Balanced door: Yes
- Door gasket: On 3 sides
- Rack guides: Embossed
- USB port: Yes
- Protection class: IPX4
- Adjustable feet: Yes
- Drain max. height: 600 mm
- Net weight: 61.000 kg
- Gross weight: 69.000 kg
- Product dimensions (WxDxH): 600 x 660 x 822 mm
- Packed product dimensions (WxDxH): 660 x 700 x 990 mm
