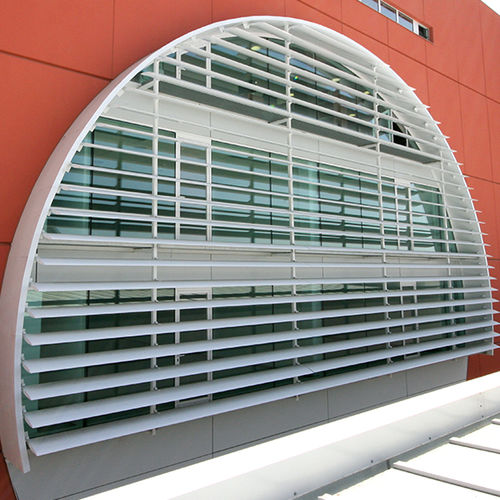

Aluminum solar shading FINGERLIP

for facade

DescriptionBrise soleil type sunbreaker system with continuous aluminium blades. Tubular extruded aluminium blades, in one single extruded piece, with elliptical format for sunbreaker or airfoil sunshade systems with continuous blades.The blade fixing system is achieved using extruded aluminium clips, with 2 positions, thus obtaining a continuous blade system in front of the supporting structure.The Tamiluz Finglerlip sunbreaker range features all the transom profiles, plugs and accessories of the very highest quality. System specificationsExtruded aluminium blades. 6060-T5 alloy (T6 optional)Extruded aluminium transoms. 6063-T5 alloyExtruded aluminium clips. 6063-T5 alloyAluminium plugs2 blade positions: 0º and 30ºHorizontal or vertical bladesMaximum distance between blade supports: 4300mm ModelsElliptical format, 6 models from 150 to 400 mm ApplicationsBrise soleil SunbreakersScreen louvresAirfoil sunshadesCanopies and pergolasSunscreens FinishesRAL chart lacquer (gloss or matt) or textured. Qualicoat sealAnodised. Qualanod seal
