Sheet cladding DRAGONERA PROFILEaluminumsteelgalvanized steel
Add to favorites
Compare this product
Characteristics
- Configuration
- sheet
- Material
- aluminum, steel, galvanized steel, COR-TEN® steel, thermo-lacquered aluminum, perforated aluminum, lacquered steel, galvanized
- Installation
- lap sidings
- Finish
- perforated, pre-lacquered, thermo-laquered, satin finish, metallized
- Appearance
- metal look
- Color
- gray, white, brown, black, red, silver-colored, blue, green, anthracite, sand
- Length
Min.: 1,250 mm
(49 in)Max.: 6,000 mm
(236 in)- Height
450 mm, 680 mm, 880 mm
(18 in, 27 in, 35 in)- Thickness
Min.: 0.6 mm
(0.02 in)Max.: 1.5 mm
(0.06 in)
Description

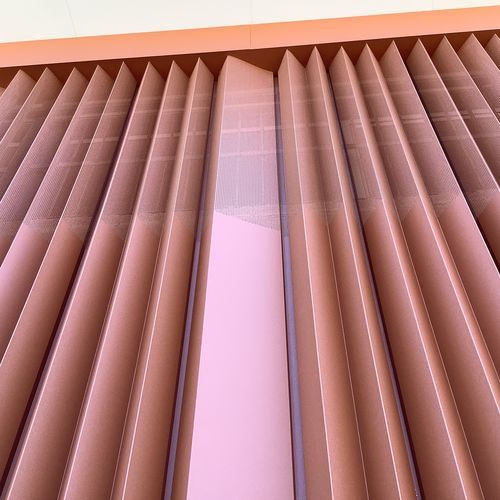

This profile belongs to the range of architectural profiles designed by TAS. It is distinguished by its irregular geometry and numerous bendings that help to create a groundbreaking design.
The profile Dragonera is formed by three different parts or "scales" which are installed overlapping.
Conceived for cladding of façades, it can be installed either vertically or horizontally and it requires an adjusted support to be installed.
DX-51D steel as per UNE-EN 10142
Aluminium EN 15088
Galvanized EN 10142
Galvanized-Precoated EN 10169
Oven lacquered EN 12206
VIDEO
Catalogs
PROFILE DRAGONERA
3 Pages
