Green roof anti-root membrane

Product

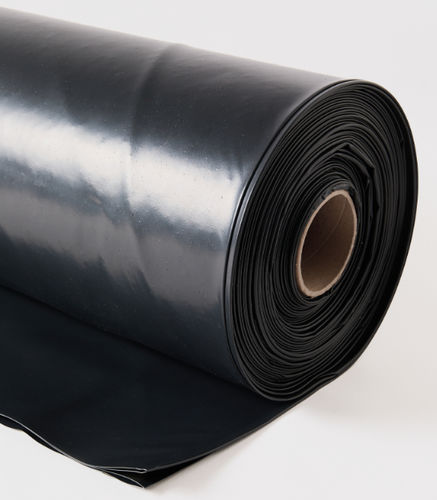

Urbanscape Root Membrane is a black recycled LD polyethylene root protection membrane for green roofs. It prevents root penetration and protects the waterproofing layer while remaining lightweight and easy to handle.

Installation

• Install the Urbanscape Root Membrane below the drainage layer on green roofs.
• If the waterproofing membrane is not root-resistant, cover it with the Urbanscape Root Membrane with at least 0.5 m overlap on all sides.
• Overlap adjacent root membrane layers by 1–1.5 m; fixing the membrane during installation is recommended for best results.
• Cut the material where drain baskets must be installed; avoid cutting directly on the waterproofing membrane.
• For safety and to protect the waterproofing, use a hook cutter; do not use a sharp blade or knife.
• After installation, the root membrane should be covered within 24 hours.

Benefits

• Complete root protection solution for green roofs
• Lightweight and easy to handle
• Efficient and fast installation
• Recycled material contributes to sustainability
• High water retention capacity
• Improved thermal performance of the roof assembly
• Enhanced acoustic insulation properties
• High resistance to fire

Technical specifications

• Material: Black recycled LD polyethylene (LDPE)
• Application: Root protection layer for green roofs
• Positioning: Installed below the drainage layer
• Overlap on waterproofing membrane: Minimum 0.5 m on all sides
• Overlap between adjacent membranes: Recommended 1–1.5 m
• Installation note: Fix membrane during installation for optimal results
• Drainage details: Cut material where drain baskets are installed
• Cutting safety: Use a hook cutter; do not cut directly on the waterproofing membrane or use a sharp blade/knife
• Covering after installation: Must be covered within 24 hours
• Performance attributes: High water absorption, thermal and acoustic performance, fire resistance
