Drainage drainage board WITH BUFFER Q60-C

protectionwater storagegreen roof drainage

Product description

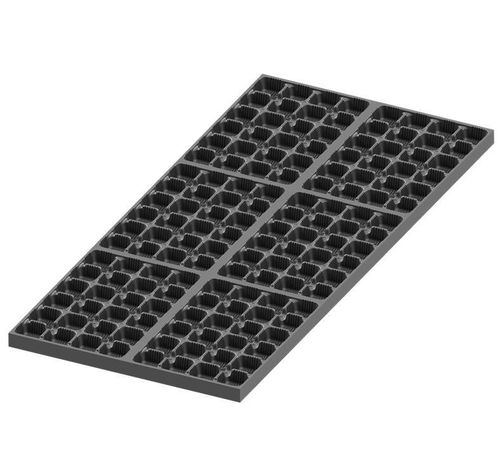

Urbanscape Drainage and Reservoir Board Q60-C is a 60 mm drainage and detention panel manufactured from recycled polystyrene. The panel is perforated on one side with the holes oriented to the top to provide water retention and controlled slow release, making it suitable for green roof systems. It is engineered for both flat and sloped green roofs with slopes up to 20% and designed to offer a compact, lightweight alternative to conventional drainage layers. The product supports detention and stormwater management while complying with FLL Guidelines for the planning, execution and upkeep of green-roof sites.

Benefits

• Complete drainage and reservoir solution for green roofs
• Lightweight construction for easier handling
• Efficient and fast installation
• Sustainable material from recycled polystyrene
• High water absorption and retention for detention
• Improved thermal performance of the roof assembly
• Enhanced acoustic insulation properties
• High resistance to fire

Technical characteristics / specifications

• Height: 60 mm
• Material: recycled polystyrene (plastic)
• Panel finish: perforated on one side (holes on upper side for water retention)
• Application: designed for green roofs (flat and sloped systems)
• Maximum slope suitability: up to 20%
• Function: drainage and reservoir board — intended for detention and slow water release
• Load-bearing capacity: excellent
• Physical properties: lighter and more compact compared with regular drainage layers
• Standards / Compliance: complies with FLL Guidelines for the planning, execution and upkeep of green-roof sites
• Performance attributes: high water absorption; high thermal performance; high acoustic performance; high fire resistance
