Plastic reinforcement grid SUBSTRATE HOLDERHDPEprotectivethermal
Add to favorites
Compare this product
Characteristics
- Material
- plastic, HDPE
- Function
- protective, thermal
- Applications
- green roof
Description
Product description

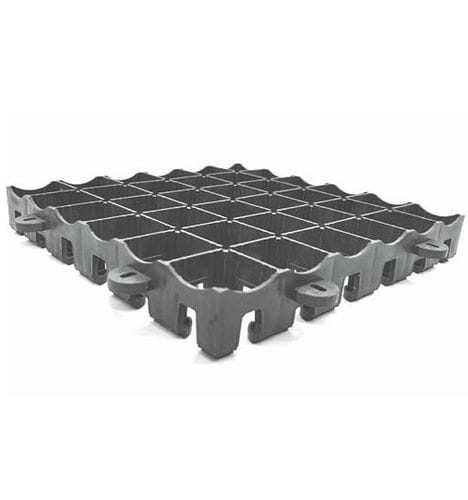

The Anti-Shear Urbanscape Substrate Holder is a plastic grid manufactured from recycled HDPE/LDPE. It is supplied in types S50 and S75 according to the applied system build-up. The grid cells are designed to retain substrate and prevent lateral displacement on inclined surfaces.
Application
The Urbanscape Substrate Holder S50/S75 is intended for use as a substrate retention layer on sloping surfaces in vegetated roof and green slope systems. Cells are filled with substrate to stabilise the growing medium. Applicable for slopes greater than 25°.
Benefits
Characteristics / Technical specifications
The Anti-Shear Urbanscape Substrate Holder is a plastic grid manufactured from recycled HDPE/LDPE. It is supplied in types S50 and S75 according to the applied system build-up. The grid cells are designed to retain substrate and prevent lateral displacement on inclined surfaces.
Application
The Urbanscape Substrate Holder S50/S75 is intended for use as a substrate retention layer on sloping surfaces in vegetated roof and green slope systems. Cells are filled with substrate to stabilise the growing medium. Applicable for slopes greater than 25°.
Benefits
- Complete solution for substrate retention on slopes
- Lightweight for reduced structural load and easier handling
- Efficient and fast installation
- Manufactured from recycled materials for sustainable projects
- Improved water retention for vegetation
- Contributes to thermal performance of the build-up
- Acoustic damping properties
- Material with fire resistance characteristics
Characteristics / Technical specifications
- Material: recycled HDPE/LDPE
- Available types: S50, S75
- Function: anti-shear substrate holder; cells are filled with substrate to prevent shearing
- Application: designed for sloping surfaces greater than 25°
- Intended use: substrate retention on slopes, vegetated roofs and green slope systems
