Drainage drainage board WITH BUFFER Q60

protectionwater storagegreen roof drainage

Product description

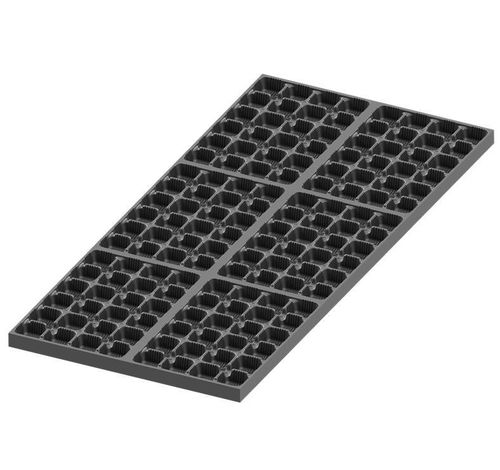

Urbanscape Drainage with buffer Q60 is a 60 mm drainage and reservoir board manufactured from recycled polystyrene. Panels are perforated on one face with the holes designed to face upwards for water retention. The product offers excellent load-bearing capacity while remaining lighter and more compact than traditional drainage layers. It is engineered for flat and pitched green-roof systems with slopes up to 20° and complies with FLL Guidelines for the Planning, Execution and Upkeep of Green-Roof Sites.

Benefits

• Complete solution for drainage and water retention
• Lightweight construction
• Quick and efficient installation
• Made from recycled materials for improved sustainability
• High water retention capacity
• Enhanced thermal performance
• Improved acoustic insulation
• High fire resistance

Technical specifications

• Product type: Drainage and reservoir board
• Height: 60 mm
• Material: Recycled polystyrene (high-quality plastic)
• Panel design: Perforated on one side; holes intended on upper side for water retention
• Applications: Flat and sloped green-roof systems (slope up to 20°)
• Performance: Excellent load-bearing capacity
• Advantages: Lighter and more compact than regular drainage layers
• Standards: Complies with FLL Guidelines for Planning, Execution and Upkeep of Green-Roof Sites
