Drainage drainage board DRAINMAT P8-G

protectionwater storagegreen roof drainage

Product

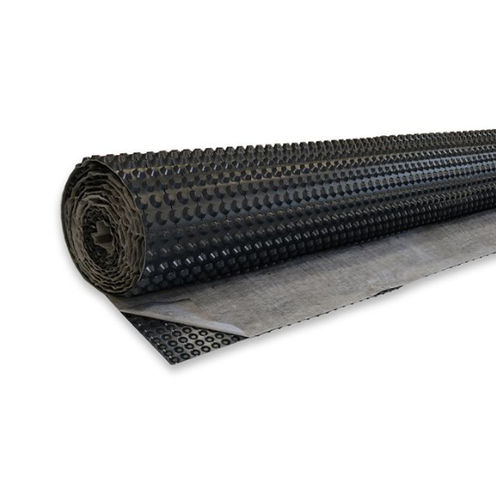

Urbanscape Drainmat P8-G is a drainage and reservoir membrane (8 mm height) made from high-density polyethylene (HDPE) designed specifically for green roofs. The membrane is perforated on one side so the holes face upward to retain water. It is intended for flat green roof systems and is also suitable for inverted roofs due to its permeability, which prevents a water film forming on inverted roof insulation.

Key functional features
The product combines drainage with water retention capacity. The integrated geotextile allows direct application of the plant substrate onto the membrane, saving an installation step. For walkable, non-vegetated areas the geotextile should be removed. The base layer and bedding material can be applied directly onto the dimpled membrane without changing the material.

Performance
Approximate pressure resistance: 200 kN/m², equivalent to a compressive strength of approximately ≈ 20 tonnes/m².

Benefits

• Complete solution
• Lightweight
• Efficient installation
• Sustainability
• High water retention
• High thermal performance
• High acoustic performance
• High fire resistance

Technical characteristics / specifications

• Product type: Drainage and reservoir membrane for green roofs
• Height: 8 mm
• Material: High-density polyethylene (HDPE)
• Perforation: Perforated on one side (holes positioned upward for water retention)
• Integrated geotextile: Yes (allows direct application of plant substrate; remove geotextile in walkable non-vegetated areas)
• Intended use: Flat green roof systems; also suitable for inverted roofs
• Pressure resistance: approx. 200 kN/m² (≈ 20 tonnes/m²)
• Installation advantages: Integrated geotextile (saves an installation step); base layer and bedding material can be applied directly on the dimpled membrane
